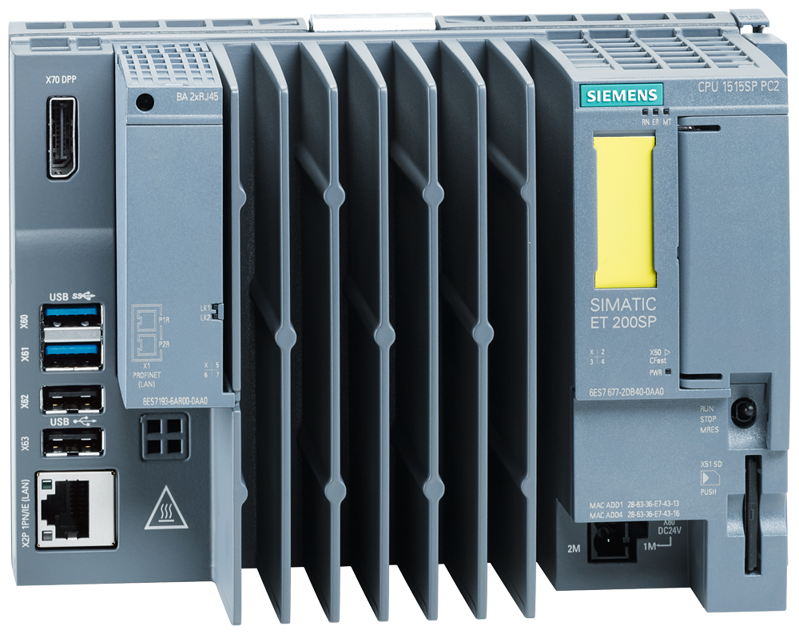

SIMATIC ET 200SP CPU 1515SP PC2 TF HMI 2048PT, 8 GB, 64-bit
SKU: 6ES7677-2WB42-0GM0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC ET 200SP Open Controller has a CPU of 1515SP PC2 TF + HMI 2048PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), 128 GB CFAST, Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Failsafe Software Controller CPU 1505SP TF V2x, and WinCC Runtime Advanced V17 preinstalled, along with a license for 2048 Power Tags; interfaces include one slot for CFAST, one slot for SD/MMC, one connection for the ET 200SP Bus Adapter PROFINET, one 10/100/1000 Mbps Ethernet, two USB 3.0, two USB 2.0, and one DisplayPort.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 1.5 A; Full processor load, incl. ET 200SP modules and using USB.
Current consumption (in no-load operation), typ.: 0.5 A.
Current consumption, max.: 2.9 A.
I²t: 0.426 A²·s; with starting current inrush.
Power:
Active power input, max.: 43 W; incl. ET 200SP modules and using USB.
Infeed power to the backplane bus: 8.75 W.
Power loss, typ.: 16 W.
Memory:
Type of memory: DDR3L.
Main memory: 8 GB RAM.
CFAST memory card: 128 GB flash memory.
Integrated work memory:
1.5 Mbyte (for program).
5 Mbyte (for data).
20 Mbyte (for CPU function library of CPU Runtime).
Integrated load memory:
320 Mbyte (on PC mass storage).
Backup:
With UPS: all memory areas declared retentive.
With non-volatile memory.
Interfaces:
Number of industrial Ethernet interfaces: 2.
Number of PROFINET interfaces: 1.
Number of PROFIBUS interfaces: 1.
Number of RS 485 interfaces: 1; Via CM DP module.
Number of USB interfaces: 4; 2x USB 2.0, 2x USB 3.0 on front side.
Number of SD card slots: 1.
Width: 160 mm.
Height: 117 mm.
Depth: 75 mm.
