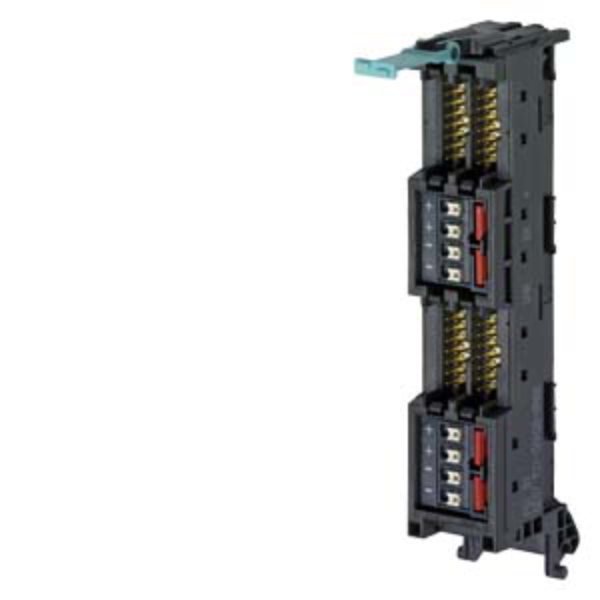

Siemens S7-1500 Front connector modules, 16-pin, power supply via push-in
SKU: 6ES7921-5AH20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This front connector module is tailored for digital 32-channel I/O modules of the S7-1500 series, featuring 4×16-pole IDC connectors and Push-In terminals for potential supply.
It supports direct mounting and simplifies cable management between the module and terminal blocks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Target System: SIMATIC S7-1500.
Connector Type: 4×16-pole IDC connectors.
Terminal Type: Push-In (4×L+, 4×M).
Rated Voltage: 24 V DC.
Max Voltage: 60 V DC.
Rated Current: 1 A per contact.
Max Total Current: 2 A (horizontal mounting).
Max Wire Length: 30 m (between connector and terminal).
Conductor Cross-Section: 0.25–1.5 mm² (with end sleeves).
Wire End Sleeve Type: DIN 46228-1 / DIN 46228-4.
Operating Temp: 0 °C to +60 °C.
Storage Temp: –40 °C to +70 °C.
Mounting: Direct (no end cover plate required).
Pollution Degree / Overvoltage Cat: 2 / 2.
Certification: cULus approved.
Reference Code: XG (IEC 81346-2).
Net Weight: ~99 g.
