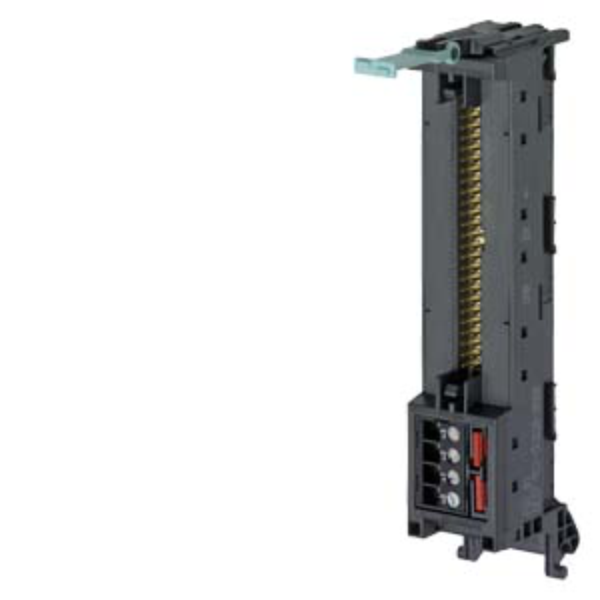

Siemens S7-1500 Front connector modules, 50-pin, power supply via screw terminals
SKU: 6ES7921-5CB20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This front connector module is engineered for digital 32-channel I/O modules in the S7-1500 series, featuring a single 50-pole IDC connector and screw-type terminals for potential supply (L+).
It’s optimized for direct mounting and robust, vibration-resistant connections in industrial control panels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Target System: SIMATIC S7-1500.
Connector Type: 1×50-pole IDC connector.
Terminal Type: Screw terminals (4×L+).
Rated Voltage: 24 V DC.
Max Voltage: 60 V DC.
Rated Current: 1 A per contact.
Max Total Current: 2 A (horizontal mounting).
Conductor Cross-Section: 0.25–2.5 mm² (flexible with end sleeves).
Wire End Sleeve Type: DIN 46228-1 / DIN 46228-4.
Stripped Length: 10 mm.
Tightening Torque: 0.4–0.7 N·m
Max Wire Length: 30 m (to terminal module).
Operating Temp: 0 °C to +60 °C.
Storage Temp: –40 °C to +70 °C.
Mounting: Direct (no end cover plate required).
Pollution Degree / Overvoltage Cat: 2 / 2.
Certification: cULus approved.
Reference Code: XG (IEC 81346-2).
Net Weight: ~99 g.
