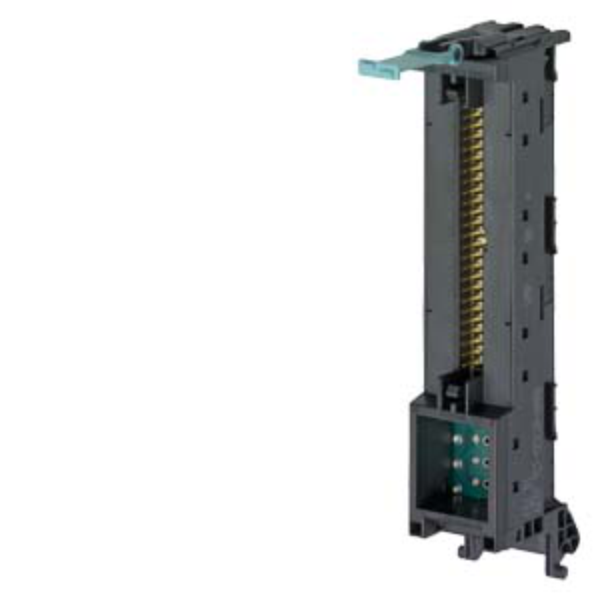

Siemens S7-1500 Front connector modules, analog modules, 50-pin
SKU: 6ES7921-5CK20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This front connector module is tailored for analog 40-pole I/O modules in the S7-1500 series, featuring a single 50-pole IDC connector.
It relies on voltage supply via the module’s feed element, eliminating the need for external L+/M terminals.
This design streamlines analog signal wiring and is ideal for compact control cabinet layouts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Target System: SIMATIC S7-1500.
Connector Type: 1×50-pole IDC connector.
Terminal Type: No external terminals (powered via module).
Rated Voltage: 24 V DC.
Max Voltage: 60 V DC.
Rated Current: 1 A per contact.
Max Wire Length: 30 m (to terminal module).
Operating Temp: 0 °C to +60 °C.
Storage Temp: –40 °C to +70 °C.
Mounting: Direct (no end cover plate required).
Pollution Degree / Overvoltage Cat: 2 / 2.
Certification: cULus approved.
Reference Code: XG (IEC 81346-2).
Net Weight: ~99 g.
