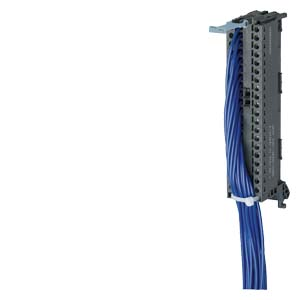

Front connector for SIMATIC S7-1500 40 pole with 20 single cores Screw version, Length = 2.5 m
SKU: 6ES7922-5BC50-0HB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a 40-pole front connector populated with 20 halogen-free single cores, pre-marked and pre-terminated for direct connection to SIMATIC S7-1500 digital I/O modules.
The cable uses H05Z-K type conductors, each with a 0.5 mm² cross-section, and comes in a screw-terminal version with a total length of 2.5 meters—ideal for short-distance routing in confined control panels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Length: 2.5 meters.
Connector Type: 40-pole (6ES7592-1AM00-0XB0).
Core Type: H05Z-K (halogen-free).
Conductor Cross-Section: 0.5 mm².
Terminal Type: Screw-type.
Number of Channels: 20.
Marking: Numbered 1 to 20 (white adapter contact).
Rated Voltage: 24 V DC (max 30 V DC).
Max Current (all cores loaded): 1.5 A.
Cable Sheath Material: Halogen-free polyolefin.
Cable Sheath Colour: Blue (RAL 5010).
Outer Diameter: 2.2 mm (bundled cores).
Net Weight: ~0.81 kg.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –15 °C to +60 °C.
Suitability: Digital signal transmission only.
Approvals: General product approval (no cULus).
