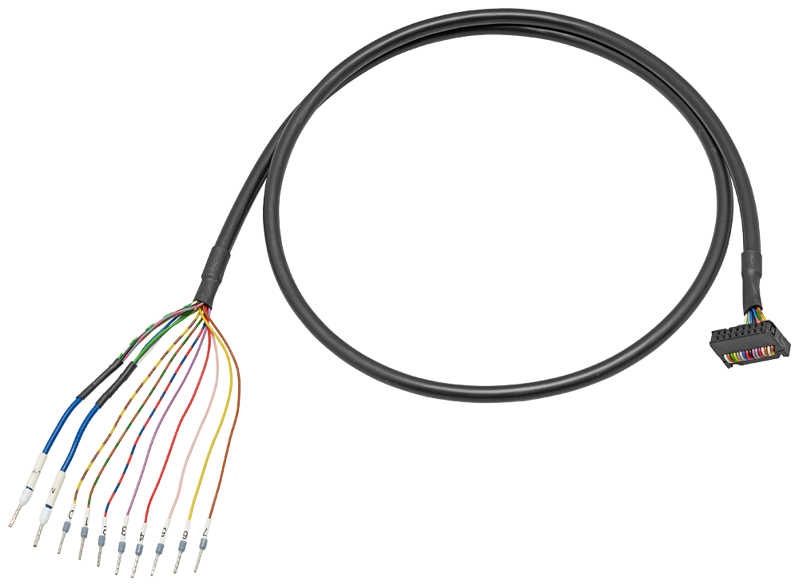

Round cable 16-pin assembled, unshielded 16-pin, 0.5 m
SKU: 6ES7923-0BA50-0FB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Connecting cable unshielded IDC connector on one side for connecting modules 8 I/O and open ends with end sleeve for control system connection.
L = 0.5 m, 0.14 mm2 is the label.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Digital I/O modules.
Operating voltage / at DC:
Rated value: 24 V.
Maximum: 60 V.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -30 ... +70 °C.
Suitability for interaction:
Input card PLC.
PLC output card.
Suitability for use: digital signal transmission.
Number of channels: 8.
Design of cable: Round cable.
Wire length: 0.5 m.
Number of poles: 16.
Number of conductors / of connection cable: 16.
Conductor cross section / rated value: 0.14 mm².
Colour / of cable sheath: Black.
Outer diameter / of cable sheath: 6.5 mm.
Material / of the connection cable sheath: PVC.
Connector type: IDC connector.
Type of electrical connection / on enclosure: end sleeve.
Number of poles / at the 1st interface: 10; control page.
Type of electrical connection / in the field: Connector strip.
Number of poles / at the 2nd interface: 16; on the connection module.
