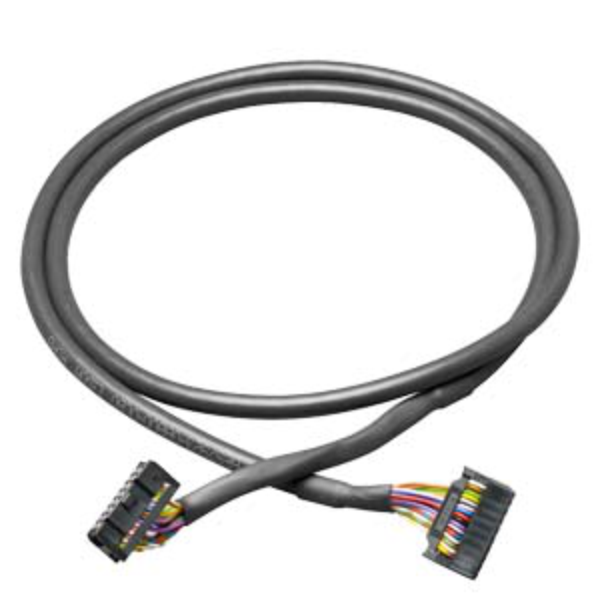

Siemens S7-1500 Pre-assembled round cable, 16-pole, 0.14 mm², unshielded, 4.0m
SKU: 6ES7923-0BE00-0CB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a pre-assembled, unshielded round cable with IDC connectors on both ends, optimized for digital signal transmission between front connector modules and connection modules.
With a length of 4.0 meters, it’s the longest standard variant in this series—ideal for expansive control cabinets or distributed module layouts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: Unshielded round cable.
Length: 4.0 m.
Connector Type: IDC (16-pole).
Number of Conductors: 16.
Conductor Cross-Section: 0.14 mm².
Cable Diameter: 6.5 mm.
Cable Sheath Material: PVC.
Cable Colour: Black.
Voltage Rating: 24 V DC (rated), 60 V DC (max).
Temperature Range (Operation): 0 °C to +60 °C.
Temperature Range (Storage): –30 °C to +70 °C.
Use Case: Digital signal transmission only.
Compatibility: SIMATIC S7-300 / S7-1500.
Net Weight: ~290 g.
Reference Code: WG (IEC 81346-2).
cULus Approval: Not certified.
