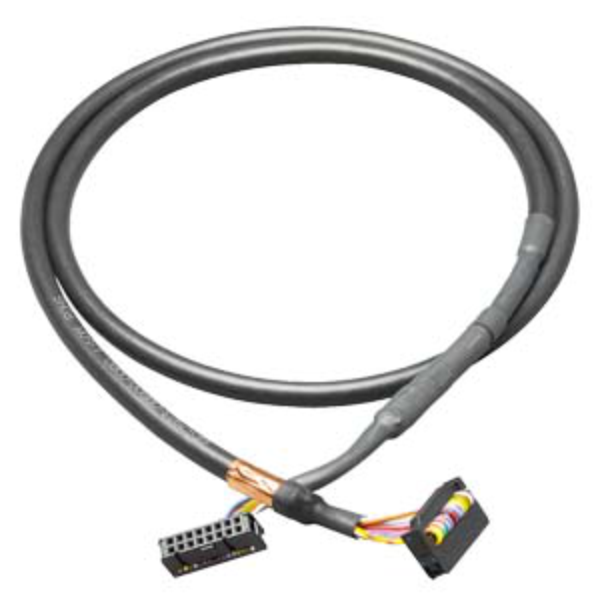

Siemens S7-1500 Pre-assembled round cable, 16-pole, 0.14 mm², shielded, 5.0m
SKU: 6ES7923-0BF00-0DB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a pre-assembled, shielded round cable with IDC connectors on both ends, engineered for digital and analog I/O signal transmission between front connector modules and connection modules.
With a length of 5.0 meters, it’s ideal for long cabinet runs or distributed layouts where EMC protection is essential.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: Shielded round cable.
Shield Type: Braided shield.
Length: 5.0 m.
Connector Type: IDC (16-pole).
Number of Conductors: 16.
Conductor Cross-Section: 0.14 mm².
Cable Diameter: 7.0 mm.
Cable Sheath Material: PVC.
Cable Colour: Black.
Voltage Rating: 24 V DC (rated), 60 V DC (max).
Temperature Range (Operation): 0 °C to +60 °C.
Temperature Range (Storage): –30 °C to +70 °C.
Use Case: Digital and analog signal transmission.
Compatibility: SIMATIC S7-300 / S7-1500.
Net Weight: ~350 g.
Reference Code: WG (IEC 81346-2).
cULus Approval: Not certified.
