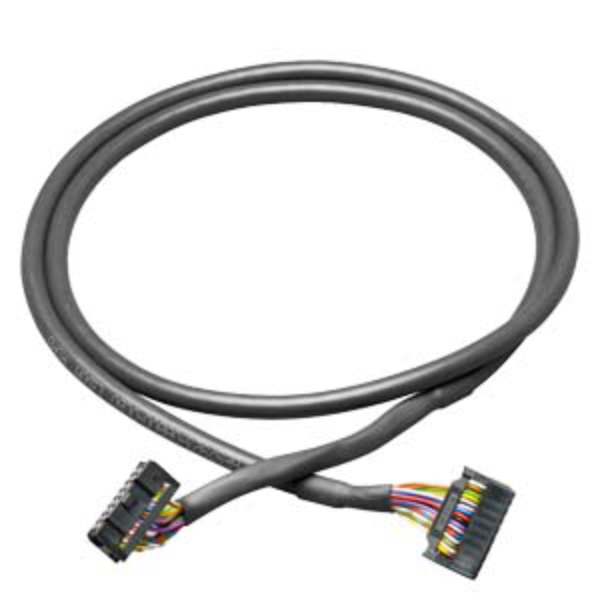

Siemens S7-1500 Pre-assembled round cable, 16-pole, 0.14 mm², unshielded, 6.5m
SKU: 6ES7923-0BG50-0CB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a pre-assembled, unshielded round cable with IDC connectors on both ends, optimized for digital signal transmission between front connector modules and connection modules.
With a generous length of 6.5 meters, it’s the longest standard variant in this series—ideal for large control rooms, extended enclosures, or distributed automation zones.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: Unshielded round cable.
Length: 6.5 m.
Connector Type: IDC (16-pole).
Number of Conductors: 16.
Conductor Cross-Section: 0.14 mm².
Cable Diameter: 6.5 mm.
Cable Sheath Material: PVC.
Cable Colour: Black.
Voltage Rating: 24 V DC (rated), 60 V DC (max).
Temperature Range (Operation): 0 °C to +60 °C.
Temperature Range (Storage): –30 °C to +70 °C.
Use Case: Digital signal transmission only.
Compatibility: SIMATIC S7-300 / S7-1500.
Net Weight: ~410 g.
Reference Code: WG (IEC 81346-2).
cULus Approval: Not certified.
