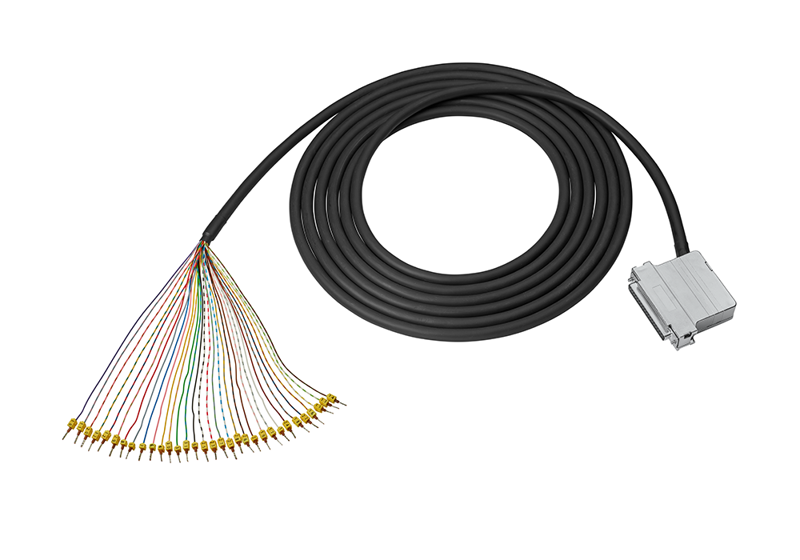

Round cable 32 pole D-Sub female to end sleeve shielded 8.0m
SKU: 6ES7923-3BJ00-0HB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Connection cable protected for SIMATIC ET200 SP HA from 37-pole D-sub to bare ends with wire end sleeves labelled 32 channels. L is equal to 8 meters and 0.14 millimetres.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: I/O modules.
Operating voltage / at DC:
Rated value: 24 V.
Maximum: 60 V.
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -30 ... +70 °C.
Suitability for interaction:
Input card PLC.
PLC output card.
Suitability for use:
Digital signal transmission.
Analog signal transmission.
Number of channels: 32.
Design of cable: Round cable.
Wire length: 8 m.
Number of poles: 32.
Number of conductors / of connection cable: 32.
Conductor cross section / rated value: 0.14 mm².
Colour / of cable sheath: Black.
Outer diameter / of cable sheath: 9 mm.
Material / of the connection cable sheath: PVC.
Design of the shield: braided shield.
Connector type: D-Sub connector.
Type of electrical connection / on enclosure: Female header.
Number of poles / at the 1st interface: 37; control page.
Type of electrical connection / in the field: End sleeve.
Number of poles / at the 2nd interface: 32; numbered.
Reference code / according to IEC 81346-2: WG.
