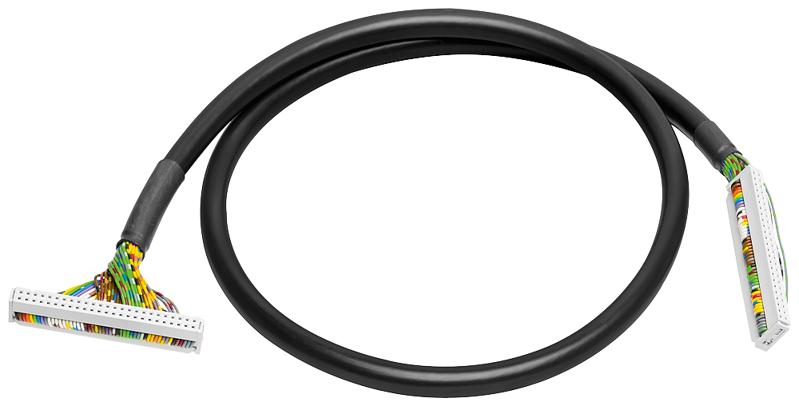

Round cable 40-pin, 40 pole and 50 pole with IDC connector, L= 3.0m
SKU: 6ES7923-5BD00-0GB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Unshielded connecting cable for SIMATIC S7-1500 64 I/O between connection module 32 I/O and I/O module X10 or X11; 0.14 mm2, L = 3.0 m, 1 piece; 40 of 50 pole IDC connector.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Digital I/O modules.
Operating voltage / at DC:
Rated value: 24 V.
Maximum: 60 V.
Ambient temperature:
During operation: -30 ... +60 °C.
During storage: -30 ... +70 °C.
Suitability for interaction:
Input card PLC.
PLC output card.
Suitability for use: digital signal transmission.
Number of channels: 32.
Design of cable: Round cable.
Wire length: 3 m.
Number of poles: 40.
Number of conductors / of connection cable: 40.
Conductor cross section / rated value: 0.14 mm².
Colour / of cable sheath: Black.
Outer diameter / of cable sheath: 10.3 mm.
Material / of the connection cable sheath: PVC.
Connector type: IDC connector.
Type of electrical connection / on enclosure: Connector strip.
Number of poles / at the 1st interface: 40; control page.
Type of electrical connection / in the field: Connector strip.
Number of poles / at the 2nd interface: 50; on the connection module.
