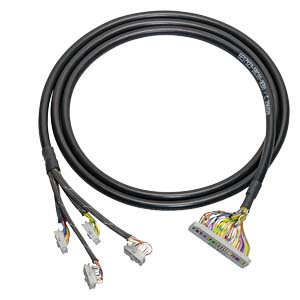

SIEMENS SIMATIC S7-300 Connecting cables Pre-assembled round cable 5m
SKU: 6ES7923-5BF00-0EB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Unshielded connecting cable for SIMATIC S7-300/1500 0.14 mm2 between front connector module 4 x 16 pole and connection module 1 x 50 pole with IDC connections, length 5.0 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Target system: SIMATIC S7-300 / 1500.
Suitability for use: Digital I/O modules.
Product type designation: Fully modular connection.
Product designation: Pre-assembled round cable.
Suitability for interaction input card PLC.
Suitability for interaction PLC output card.
Suitability for digital signal transmission.
Operating data:
Operating voltage / at DC (rated value): 24 V.
Operating voltage / at DC (maximum): 60 V.
Ambient temperature (during operation): 0 - 60 °C.
Ambient temperature (during storage): -30 - +70 °C.
Product properties, functions, components / general:
Number of channels: 32.
Design of cable: Round cable.
Wire length: 5 m.
Number of poles: 50.
Number of conductors / of connection cable: 50.
Conductor cross section / rated value: 0.14 mm².
Color / of cable sheath: Black.
Outer diameter / of cable sheath: 10.3 mm.
Material / of the connection cable sheath: PVC.
Connector type: IDC connector.
Type of electrical connection / on enclosure: Connector strip.
Number of poles / at the 1st interface: 16; Set of 4 at the cable side front connector module.
Type of electrical connection / in the field: Connector strip.
Number of poles / at the 2nd interface: 50; on the connection module.
Reference code / according to IEC 81346-2: WG.
