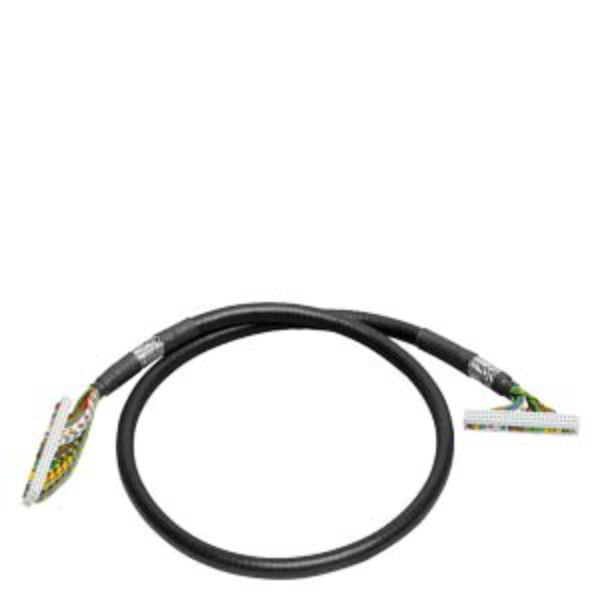

Siemens S7-1500 Pre-assembled round cable, 50-pole, 0.14 mm², shielded 8.0m
SKU: 6ES7923-5BJ00-0DB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a pre-assembled, shielded round cable with IDC connectors on both ends, engineered for signal transmission between front connector modules and connection modules.
With 50 conductors and a length of 8.0 meters, it’s the longest shielded variant in the series—ideal for distributed layouts and installations in high-interference environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: Shielded round cable.
Shield Type: Braided shield.
Length: 8.0 m.
Connector Type: IDC (50-pole).
Number of Conductors: 50.
Number of Channels: 32.
Conductor Cross-Section: 0.14 mm².
Cable Diameter: 11 mm.
Cable Sheath Material: PVC.
Cable Colour: Black.
Voltage Rating: 24 V DC (rated), 60 V DC (max).
Temperature Range (Operation): 0 °C to +60 °C.
Temperature Range (Storage): –30 °C to +70 °C.
Use Case: Digital and analog signal transmission.
Compatibility: SIMATIC S7-1500.
Net Weight: ~550 g.
Reference Code: WG (IEC 81346-2).
cULus Approval: Not certified.
