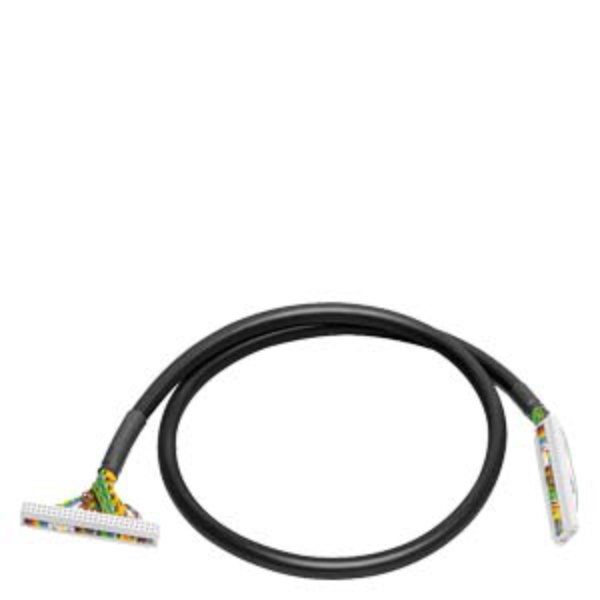

Siemens S7-1500 Pre-assembled round cable, 50-pole, 0.14 mm², unshielded 10.0m
SKU: 6ES7923-5CB00-0CB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a pre-assembled, unshielded round cable with IDC connectors on both ends, engineered for digital signal transmission between front connector modules and connection modules.
With 50 conductors and a length of 10.0 meters, it’s the longest variant in the unshielded 50-pole series—ideal for extended cabinet layouts or distributed module configurations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: Unshielded round cable.
Length: 10.0 m.
Connector Type: IDC (50-pole).
Number of Conductors: 50.
Number of Channels: 32.
Conductor Cross-Section: 0.14 mm².
Cable Diameter: 10.3 mm.
Cable Sheath Material: PVC.
Cable Colour: Black.
Voltage Rating: 24 V DC (rated), 60 V DC (max).
Temperature Range (Operation): 0 °C to +60 °C.
Temperature Range (Storage): –30 °C to +70 °C.
Use Case: Digital signal transmission only.
Compatibility: SIMATIC S7-1500.
Net Weight: ~620 g.
Reference Code: WG (IEC 81346-2).
cULus Approval: Not certified.
