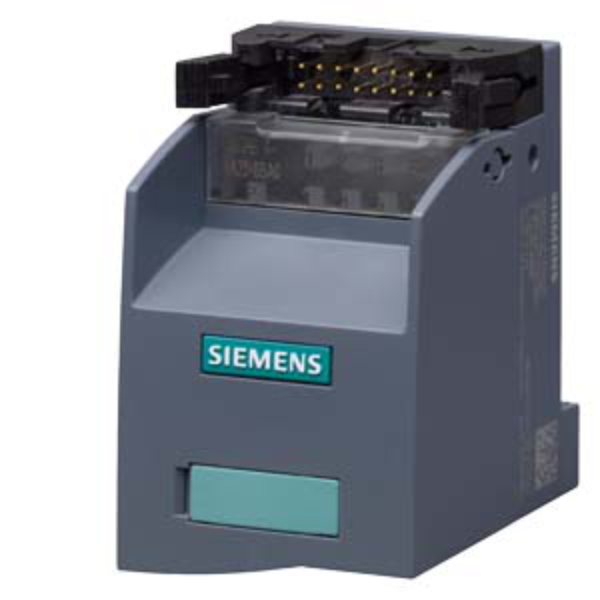

Siemens S7-1500 Terminal module TP1; 16-pin, push-in terminals with LEDs
SKU: 6ES7924-0AA20-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TP1 connection module with push-in terminals and LED indicators, designed to interface between SIMATIC S7-300/1500 systems and field-level sensors/actuators.
It supports 8 signal channels, includes 2×2 terminals for potential distribution (L+ and M), and features status LEDs for both signal and power—ideal for diagnostics and visual monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8.
Potential Terminals: 2× L+, 2× M.
Connector Interface: 16-pole IDC connector with strain relief.
Max Wire Length: 30 m (to front connector module).
Rated Voltage: 24 V DC (nominal), 28.8 V DC (max).
Max Current per Pin: 1 A.
Total Current: 4 A.
LED Indicators: Yellow (I/O status), Green (power OK).
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 40 × 58 × 50 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
PE / Shield / Disconnect Function: Not included.
Approvals: cULus certified.
Net Weight: ~50 g.
Environmental Product Declaration: Yes (GWP: 25.1 kg CO₂ eq total).
