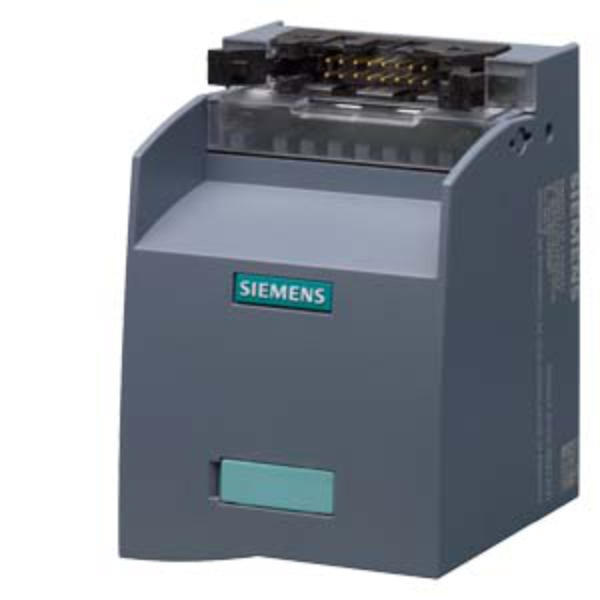

Siemens S7-1500 Connection modules for digital output modules 2A; push-in terminals without LEDs
SKU: 6ES7924-0BB20-0AC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TP2 connection module designed for 2-wire digital output configurations in SIMATIC S7-300/1500 systems.
It supports 8 output channels, each rated for up to 2 A, and includes 2×6 multiplication terminals for shared potential distribution.
The absence of LED indicators makes it ideal for compact installations where visual diagnostics are not required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TP2 (2A Output Module).
Terminal Type: Push-in terminals (no LED).
Number of Channels: 8 (digital outputs).
Output Current per Channel: 2 A.
Rated Voltage: 24 V DC nominal / 50 V DC max.
Max Current per Pin: 1 A.
Total Current: 4 A.
Multiplication Terminals: 2×6 M terminals.
Connector Interface: 16-pole IDC connector with strain relief.
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 57 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus certified.
Net Weight: ~100 g.
Environmental Product Declaration: Yes (GWP: 14.6 kg CO₂ eq total).
