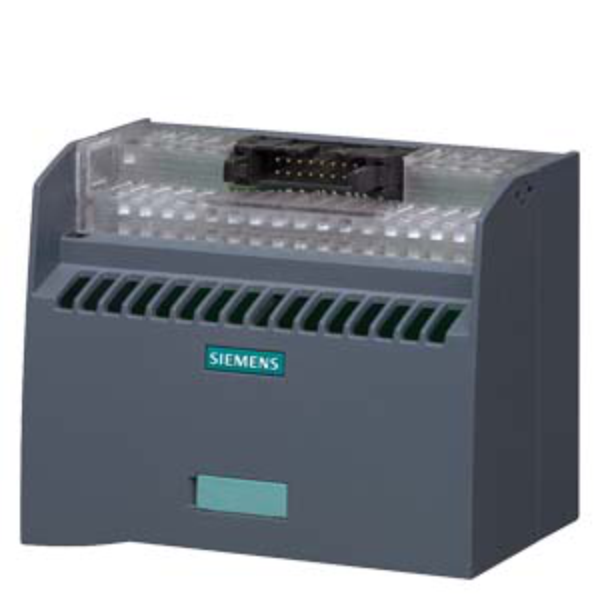

Siemens S7-1500 Terminal module TPRo, push-in terminals with LEDs
SKU: 6ES7924-0BD20-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TPRO connection module with 8 relay outputs, each configured as normally open (NO) contacts.
It supports switching of 230 V AC / 3 A or 30 V DC / 3 A loads, making it ideal for interfacing PLC outputs with field-level actuators.
The module includes status LEDs and push-in terminals, offering fast wiring and clear diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TPRO (Relay Output Module).
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8 (relay outputs).
Contact Type: Single NO contact.
Switching Capacity: 230 V AC / 3 A or 30 V DC / 3 A.
Operating Voltage: 24 V DC (nominal), 28.8 V DC (max).
Max Current per Pin: 1 A.
Total Current: 4 A.
Relay Endurance: 3 million mechanical cycles / 50,000 electrical.
Operating Frequency: 0.1 Hz.
LED Indicators: Yellow (I/O status), Green (power OK).
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 100 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus, CE, RCM certified.
Net Weight: ~230 g.
Environmental Product Declaration: Yes (GWP: 234.2 kg CO₂ eq total).
