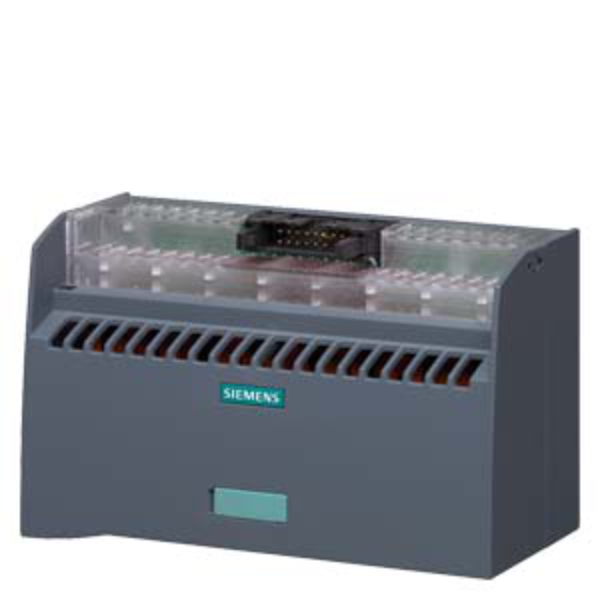

Siemens S7-1500 Terminal module TPRi, (230 V AC) push-in terminals with LEDs
SKU: 6ES7924-0BE20-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TPRI connection module with 8 relay inputs, each configured as normally open (NO) contacts.
It’s designed to adapt 230 V AC input signals to 24 V DC logic levels, making it ideal for interfacing high-voltage field signals with SIMATIC S7-300/1500 PLCs.
The module includes status LEDs and push-in terminals for fast, tool-free wiring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TPRI (Relay Input Module).
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8 (relay inputs).
Input Voltage (Relay Coil): 230 V AC.
Output Signal: 24 V DC / 0.05 A max per channel.
Operating Frequency: 8.33 Hz (max).
Relay Endurance: 10 million mechanical / 3 million electrical cycles.
LED Indicators: Yellow (I/O status), Green (power OK).
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 130 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus, CE, RCM certified.
Net Weight: ~320 g.
Environmental Product Declaration: Yes (GWP: 287.2 kg CO₂ eq total).
