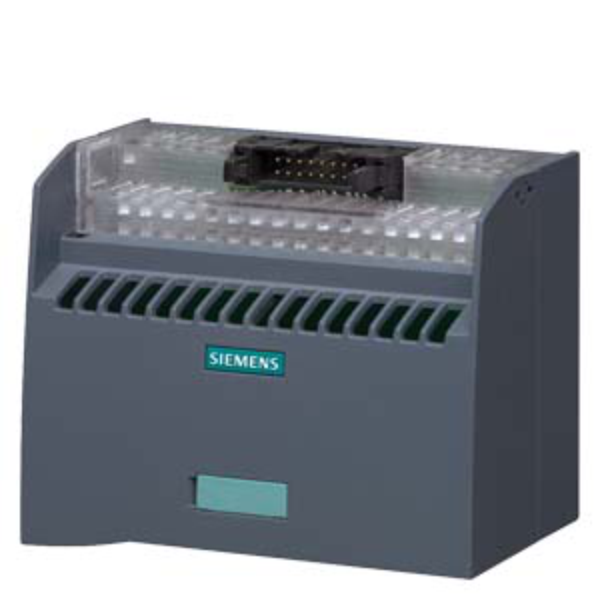

Siemens S7-1500 Terminal module TPOo; push-in terminals with LEDs
SKU: 6ES7924-0BF20-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TPOO connection module with 8 optocoupler outputs, designed to interface SIMATIC S7-300/1500 PLCs with field-level actuators.
It supports 24 V DC switching, with short-circuit and overload protection, and includes status LEDs for each output plus power indication.
The push-in terminals offer fast, tool-free wiring and the module supports high-frequency switching.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TPOO (Optocoupler Output Module).
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8 (optocoupler outputs).
Output Type: Electronic (optocoupler).
Switching Capacity: 24 V DC / 4 A (short-circuit and overload-proof).
Operating Voltage: 24 V DC (nominal), 28.8 V DC (max).
Max Current per Pin: 1 A.
Total Current: 32 A (grouped; max 16 A per group of 4 channels).
Operating Frequency: Up to 500 Hz.
LED Indicators: Yellow (I/O status), Green (power OK).
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 130 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus, CE, RCM certified.
Net Weight: ~250 g.
Environmental Product Declaration: Yes (GWP: 286.2 kg CO₂ eq total).
