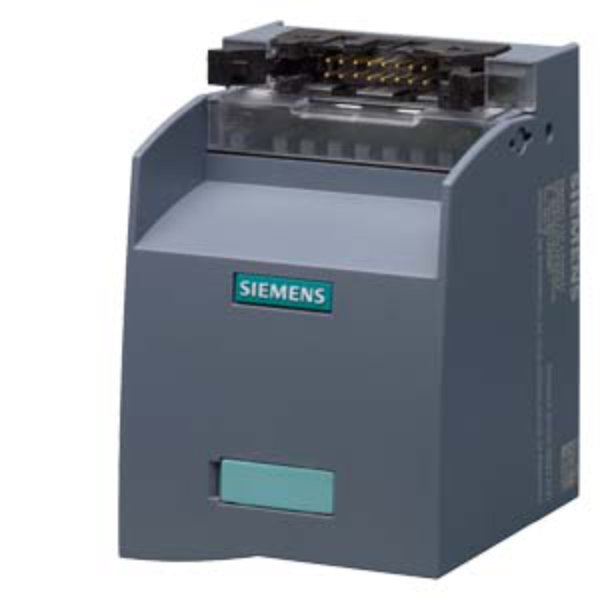

Siemens S7-1500 Terminal module TP3; screw-type terminals without LEDs
SKU: 6ES7924-0CA20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TP3 connection module with screw-type terminals and no LED indicators, designed for 3-wire signal connections in SIMATIC S7-300/1500 systems.
It supports 8 I/O channels and includes 10× L+ and 10× M terminals for structured potential distribution—ideal for installations requiring separate power lines per signal.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TP3 connection module.
Terminal Type: Screw-type terminals (no LED).
Number of Channels: 8.
Potential Terminals: 10× L+, 10× M.
Connector Interface: 16-pole IDC connector with strain relief.
Max Wire Length: 30 m (to front connector module).
Rated Voltage: 24 V DC / 50 V DC max.
Max Current per Pin: 1 A.
Total Current: 4 A.
Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 57 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage)P: –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
PE / Shield / Disconnect Function: Not included.
Approvals: cULus certified.
Net Weight: ~160 g.
Environmental Product Declaration: Yes (GWP: 11.7 kg CO₂ eq total).
