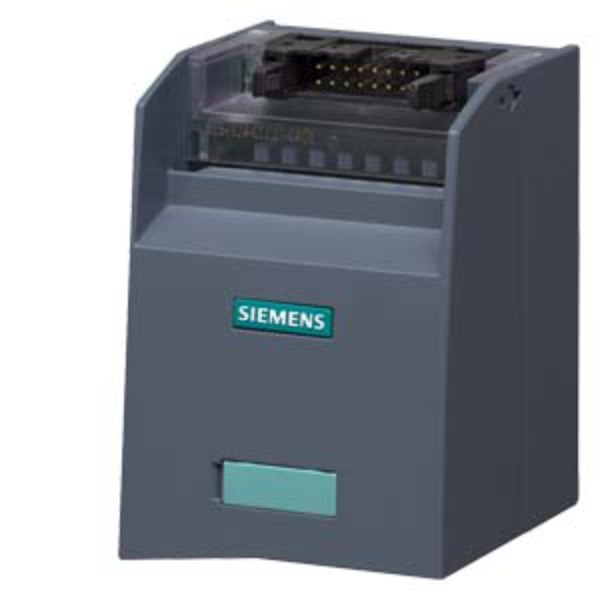

Siemens S7-1500 Terminal module TP3; push-in terminals with LEDs
SKU: 6ES7924-0CA20-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TP3 connection module with push-in terminals and integrated LED indicators, designed for 3-wire signal connections in SIMATIC S7-300/1500 systems.
It supports 8 I/O channels and includes 10× L+ and 10× M terminals for structured potential distribution.
The addition of status LEDs enhances diagnostics and visual monitoring—ideal for systems requiring both modular wiring and fault visibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TP3 connection module.
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8.
Potential Terminals: 10× L+, 10× M.
Connector Interface: 16-pole IDC connector with strain relief.
Max Wire Length: 30 m (to front connector module).
Rated Voltage: 24 V DC (nominal), 28.8 V DC (max).
Max Current per Pin: 1 A.
Total Current: 4 A.
LED Indicators: Yellow (I/O status), Green (power OK).
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 57 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
PE / Shield / Disconnect Function: Not included.
Approvals: cULus certified.
Net Weight: ~100 g.
Environmental Product Declaration: Yes (GWP: 25.2 kg CO₂ eq total).
