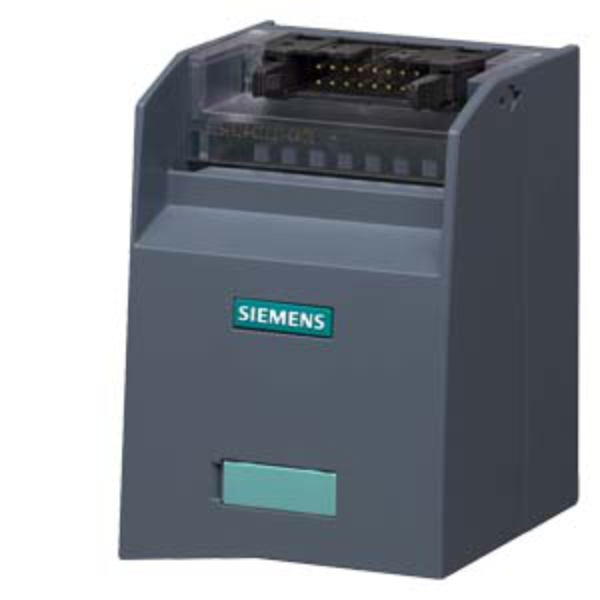

Siemens S7-1500 Terminal module for analog modules (for S7-1500 only); 16-pin, push-in terminals without LEDs
SKU: 6ES7924-0CC20-0AC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TPA connection module with 30 terminals optimized for analog signal routing.
It uses push-in terminals for fast, tool-free wiring and includes a 16-pole IDC connector for seamless integration with SIMATIC S7-1500 analog modules.
The absence of LED indicators makes it ideal for installations where visual feedback is not required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TPA (Analog I/O Module).
Terminal Type: Push-in terminals (no LED).
Number of Terminals: 30.
Rated Voltage: 24 V DC nominal / 50 V DC max.
Max Current per Pin: 1 A.
Total Current: 1 A per signal cable.
Connector Interface: 16-pole IDC connector with strain relief.
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 57 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus certified.
Net Weight: ~110 g.
Environmental Product Declaration: Yes (GWP: 11.7 kg CO₂ eq total).
