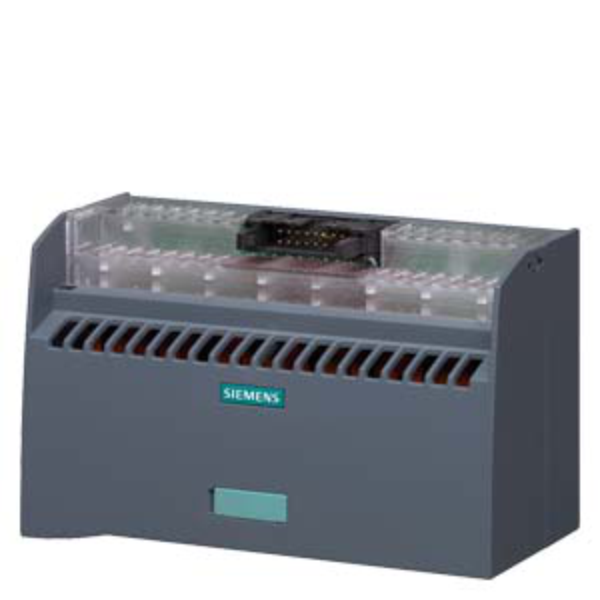

Siemens S7-1500 Terminal module TP3; screw-type terminals with LED and fuse per channel
SKU: 6ES7924-0CL20-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TP3 connection module with push-in terminals, LED indicators, and integrated isolating terminals per channel.
It supports 8 I/O channels and includes 10× L+ and 10× M terminals for structured potential distribution.
The disconnector function allows selective signal separation—ideal for maintenance, fault tracing, or modular system design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TP3 with isolating terminals.
Terminal Type: Push-in terminals with LED indication.
Number of Channels: 8.
Potential Terminals: 10× L+, 10× M.
Connector Interface: 16-pole IDC connector with strain relief.
Disconnector Function: Yes (per channel).
LED Indicators: Yellow (I/O status), Green (power OK).
Rated Voltage: 24 V DC (nominal), 28.8 V DC (max).
Max Current per Pin: 1 A.
Total Current: 4 A.
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Mounting: DIN rail (35 mm or 15 mm), any position.
Dimensions (W × H × D): 57 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus certified.
Net Weight: ~180 g.
Environmental Product Declaration: Yes (GWP: 34.3 kg CO₂ eq total).
