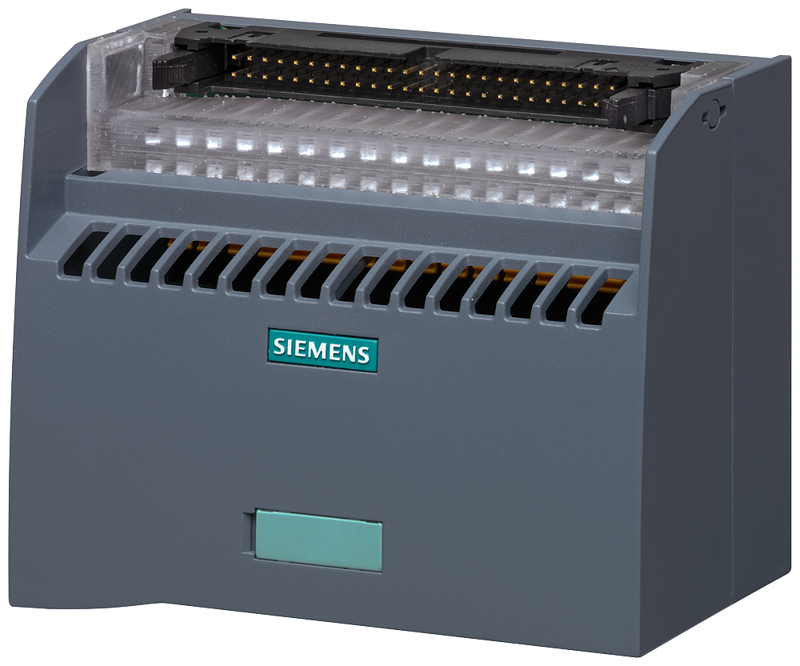

Connection module digital, TP1 M-Signal, 32 I/O, push in, LED

Specifications: Suitability for use: Digital I/O modules. Operating voltage: At DC / rated value: 24 V Rated value: 24 V. At DC / maximum: 28.8 V. Current / rated value: 1 A. Continuous current / at DC / per signal cable / maximum: 1 A. Total current / maximum: 2 A. Operating temperature: -30 ... +60 °C. Ambient temperature: During operation: -30 ... +60 °C. During storage: -40 ... +70 °C. Number of terminal levels: 1. Number of terminal points / per terminal level: 1. Number of terminals: 40; 32 x I/O; 4 x L+, 4 x M. Type of connecting terminal: Push-In. Type of electrical connection / for actuators and sensors: Push-In. Position / of the terminal: Top. Design of LED initiator/actuator terminal: Push-In. Width of screwdriver blade: 3.5 mm. Number of cables / per connection: 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule. Connectable conductor cross-section: For flexible conductor / with core end processing: 0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar. Stranded: 0.2 ... 2.5 mm². Finely stranded / without core end processing: 0.2 ... 2.5 mm². Finely stranded / with core end processing: 2.5 mm². Number of poles / at the 1st interface: 50; the IDC connector for the connection cable. Type of electrical connection / for connecting cable: Plug-in connection. Number of the plug contacts / of the electrical connection: 1. Wire length / maximum: 30 m; between front connector module and Connection module. Mounting type: DIN rail 35 mm, DIN rail 15 mm. Degree of pollution: 2. Overvoltage category: 2. Combustibility class according to UL 94: V1. Colour: Of the enclosure: grey. Of the light source: without. Length: 76 mm. Height / of the enclosure: 76 mm. Width / of the enclosure: 100 mm. Depth / of the enclosure: 60 mm. Height / with lowest-profile installation: 60 mm.
