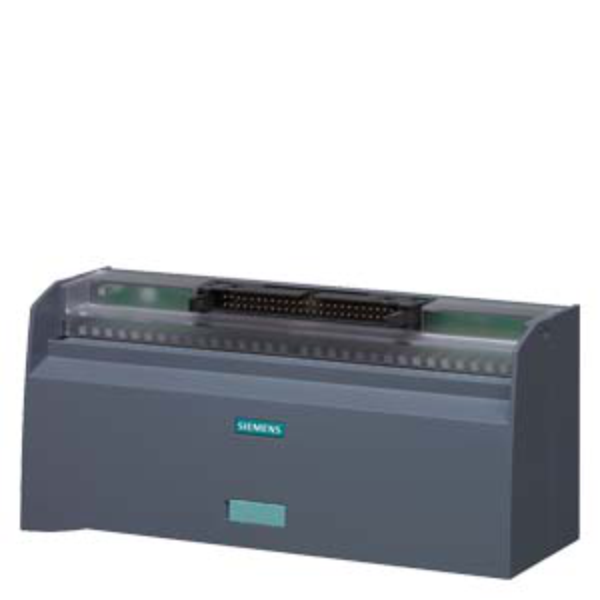

Siemens S7-1500 Terminal module for analog modules (for S7-1500 only); 50-pin, push-in terminals without LEDs
SKU: 6ES7924-2CC20-0AC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a TPA connection module with 72 terminals, optimized for analog signal interfacing in SIMATIC S7-1500 systems.
It uses push-in terminals for fast, tool-free wiring and includes a 50-pole IDC connector for seamless integration with analog modules.
The absence of LED indicators makes it ideal for compact installations focused on clean signal routing.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: TPA (Analog I/O Module).
Terminal Type: Push-in terminals (no LED).
Number of Terminals: 72.
Rated Voltage: 24 V DC nominal / 50 V DC max.
Max Current per Pin: 1 A.
Total Current: 1 A per signal cable.
Connector Interface: 50-pole IDC connector with strain relief.
Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
Dimensions (W × H × D): 130 × 76 × 60 mm.
Ambient Temperature (Operation): 0 °C to +60 °C.
Ambient Temperature (Storage): –40 °C to +70 °C.
Combustibility Class (UL 94): V1.
Pollution Degree / Overvoltage Category: 2 / II.
Approvals: cULus certified.
Net Weight: ~270 g.
Environmental Product Declaration: Yes (GWP: 89.7 kg CO₂ eq total).
