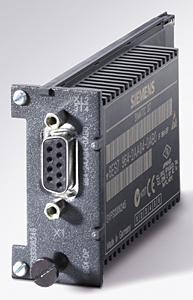

SIMATIC S7-400 IF 964-DP
SKU: 6ES7964-2AA04-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7, IF964-DP Interface Module, DP Master for S7-400.
Input current:
Current consumption, max.:
150 mA; Current consumption from S7-400 bus:
The module uses no current at 24 V, it provides this voltage only at the DP interface.
Total current consumption of the components connected to the DP interface, but maximum 150 mA.
Current carrying capacity of the isolated 5 V (P5ext) maximum 90 mA, current carrying capacity of the 24 V maximum 150 mA.
Power loss:
Power loss, typ.: 1 W.
Buy currently uses Select Automation shop pricing and checkout.
Interfaces:
PROFIBUS DP:
Cable length, max.: 1 200 m; At 9.6 kbit/s: max. 1 200 m; at 12 Mbit/s: max. 100 m.
1. Interface:
Isolated: Yes.
Protocols:
PROFIBUS DP master: Yes; Default setting.
PROFIBUS DP device: Yes.
PROFIBUS DP master:
Transmission rate, max.: 12 Mbit/s.
max. number of DP devices: 125; depending on the CPU used.
Services:
PG/OP communication: Yes.
Equidistance: Yes.
SYNC/FREEZE: Yes.
Direct data exchange (slave-to-slave communication): Yes.
Address area:
Inputs, max.: device dependent.
Outputs, max.: device dependent.
communication functions / header:
Number of connections:
overall: device dependent.
Dimensions:
Width: 26 mm.
Height: 54 mm.
Depth: 130 mm.
Weights:
Weight, approx.: 65 g.
