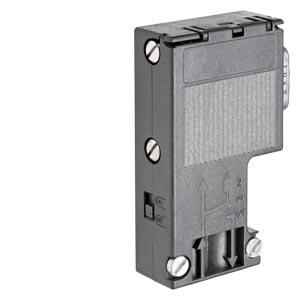

SIEMENS SIMATIC S7-300 PROFIBUS DP bus connector RS 485, With 90 degrees cable outlet, max. transfer rate 12 Mbps - without PG interface
SKU: 6ES7972-0BA12-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, connection plug for PROFIBUS up to 12 Mbit/s, 90° cable outlet, 15.8x 64x 35.6 mm (W x H x D), terminating resistor with isolating function, no PG socket.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
Transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s.
Type of cable outlet: 90-degree cable outlet.
Width: 15.8 mm.
Height: 64 mm.
Depth: 35.6 mm.
Ambient temperature (during operation): -25 ... +60 °C.
Ambient temperature (during storage): -40 ... +70 °C.
Ambient temperature (during transport): -40 ... +70 °C.
Protection class IP: IP20.
Interfaces:
Number of electrical connections (for PROFIBUS cables): 2.
Number of electrical connections (for network components or terminal equipment): 1.
Type of electrical connection (for PROFIBUS cables): Screw.
Type of electrical connection (for network components or terminal equipment): 9-pin sub-D connector.
Mechanical data:
Design of terminating resistor: Resistor combination integrated and connectable via slide switch.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
