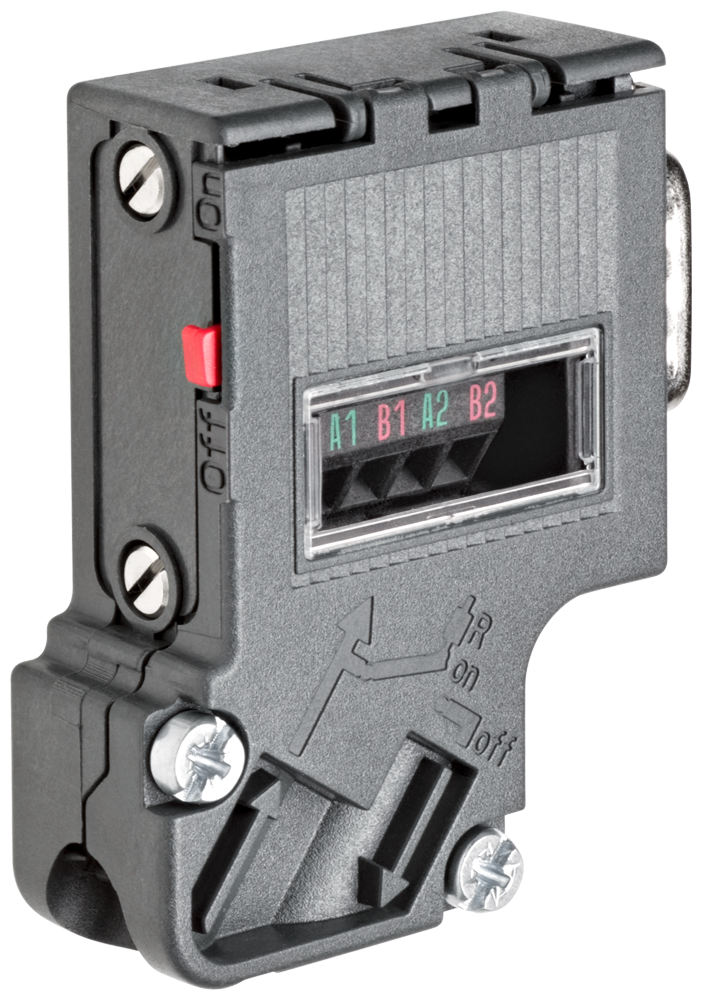

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s with inclined cable
SKU: 6ES7972-0BA42-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: PROFIBUS connection.
PROFIBUS bus connector, RS 485 screw, no programming port, 35°.
SIMATIC DP, connection plug for PROFIBUS up to 12 Mbit/s with slanted cable outlet, 15.8x 54x 39.5 mm (WxHxD), terminating resistor with isolating function, no PG socket.
Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 2.
For network components or terminal equipment: 1.
Type of electrical connection:
For PROFIBUS cables: Screw.
For network components or terminal equipment: 9-pin sub D connector.
Type of electrical connection / FastConnect: No.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Design of terminating resistor: Resistor combination integrated and connectable via slide switch.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
Design, dimensions and weights:
Type of cable outlet: 35° cable outlet.
Width: 15.8 mm.
Height: 54 mm.
Depth: 39.5 mm.
Net weight: 29 g.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Product component:
PG connection socket: No.
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
Reference code:
According to IEC 81346-2: XG.
