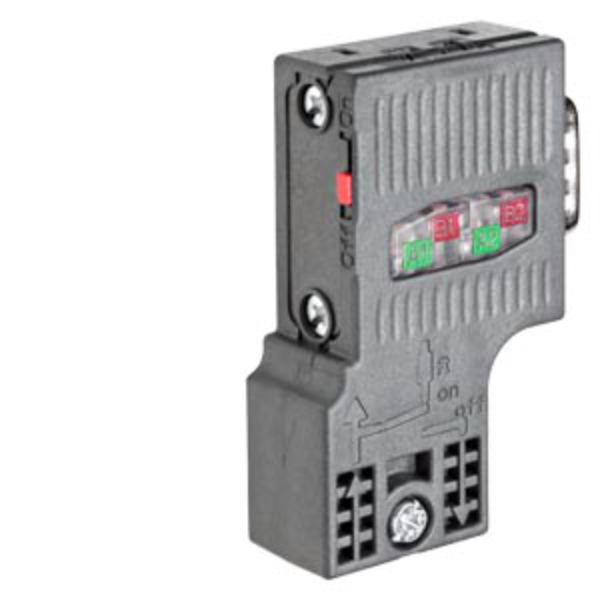

Siemens S7-1500 PROFIBUS RS 485 FastConnect connector, without PG interface
SKU: 6ES7972-0BA52-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a Fast Connect PROFIBUS connector with a 90° cable outlet, built for RS485-based PROFIBUS DP communication up to 12 Mbit/s.
It features insulation displacement terminals for quick installation and includes an integrated terminating resistor switch.
This version does not include a PG (programming) port, making it ideal for compact installations where programming access isn’t required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: PROFIBUS RS485.
Connector Type: 9-pin Sub-D (for device) + IDC (for cable).
Cable Outlet: 90° angled.
Termination: Integrated resistor switch.
PG Socket: Not included.
Installation Method: Fast Connect (IDC).
Supported Baud Rates: 9.6 kbit/s to 12 Mbit/s.
Dimensions (W×H×D): 15.8 × 59 × 35.6 mm.
Protection Class: IP20.
Operating Temp: –25 °C to +60 °C.
Weight: ~36 g.
