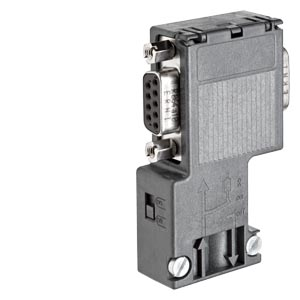

SIEMENS SIMATIC S7-300 PROFIBUS DP bus connector RS 485, With 90° cable outlet, max. transfer rate 12 Mbps - with PG interface

Specifications: Product type designation: PROFIBUS connector. Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable. Transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s. Type of cable outlet: 90-degree cable outlet. Width: 15.8 mm. Height: 64 mm. Depth: 35.6 mm. Product feature: silicon-free. Product component: PG connection socket and strain relief. Interfaces: Number of electrical connections (for PROFIBUS cables): 2. Number of electrical connections (for network components or terminal equipment): 1. Type of electrical connection (for PROFIBUS cables): Screw. Type of electrical connection (for network components or terminal equipment): 9-pin sub-D connector. Mechanical data: Design of terminating resistor: Resistor combination integrated and connectable via slide switch. Material / of the enclosure: plastic. Locking mechanism design: Screwed joint. Ambient conditions: Ambient temperature (during operation): -25 - +60 °C. Ambient temperature (during storage): -40 - +70 °C. Ambient temperature (during transport): -40 - +70 °C. Protection class IP: IP20.
