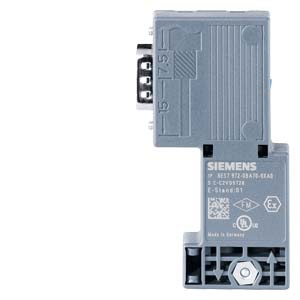

Siemens S7-1500 PROFIBUS FastConnect, With programming device interface
SKU: 6ES7972-0BB70-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The product type designation is PROFIBUS connection.
PROFIBUS bus connector, RS 485, Fast Connect, no programming port, 90°.
Simatic DP, 90° cable outlet, 15.8 x 72.2 x 36.4 mm (W x H x D), insulation displacement method FastConnect, no PG socket. Connection plug for PROFIBUS up to 12 Mbit/s.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
transfer rate:
transfer rate / with PROFIBUS DP: 9.6 kbit/s ... 12 Mbit/s.
interfaces:
number of electrical connections:
for PROFIBUS cables: 2.
for network components or terminal equipment: 1.
type of electrical connection:
for PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables.
for network components or terminal equipment: 9-pin sub D connector.
type of electrical connection / FastConnect: Yes.
mechanical data:
design of terminating resistor: Resistor combination integrated and connectable via slide switch. Isolation function: When resistor is connected, outgoing bus is disconnected.
material / of the enclosure: plastic.
locking mechanism design: Screwed joint.
design, dimensions and weights:
type of cable outlet: 90 degree cable outlet.
width: 15.8 mm.
height: 72 mm.
depth: 36.4 mm.
net weight: 45 g.
ambient conditions:
ambient temperature.
during operation: -25 ... +60 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
protection class IP: IP20.
product features, product functions, product components / general:
product feature.
silicon-free: Yes.
product component.
PG connection socket: Yes.
strain relief: Yes.
