SIDOOR M4 R With driven gear on the right

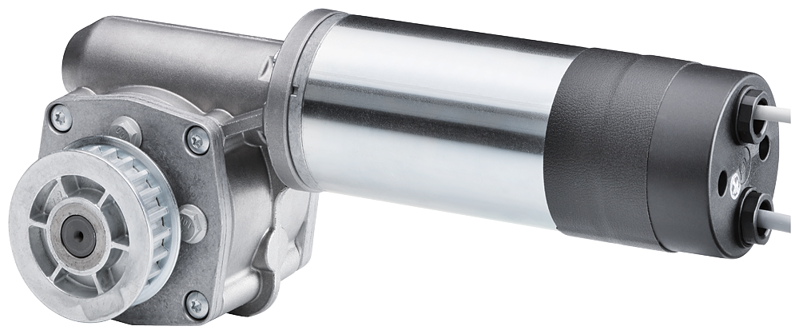

SIDOOR M4 R geared motor, Pinion, right max. 400kg door weight, Cable length 1.5 m, 30VDC, -20°C to +50°C The SIDOOR Basic drives are characterized by an integrated motor connection cable with a cable length of 1.5 m, allowing a direct connection with the SIDOOR control device. Additionally, the permanently fixed belt pulley provided for the output shaft of the gear unit is optimized for toothed belt transmission with its S8M toothing. The SIDOOR Basic drives are divided into the performance classes M2 up to 120 kg (for AT40 only), M3 up to 180 kg, M4 up to 400 kg, and M5 up to 600 kg. The SIDOOR Advanced drives MDG3/MDG4/MDG5 are also available for the ATD4xxW controllers. A wide selection of geared motors ensures that there is always a left and right geared motor variant available. All necessary mechanical components such as guide pulleys, mounting brackets, door clutch holders, and toothed belts are available accordingly as accessories for doors with toothed belt transmission.
