Optical handheld reader SIMATIC MV320
SKU: 6GF3320-0HT01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

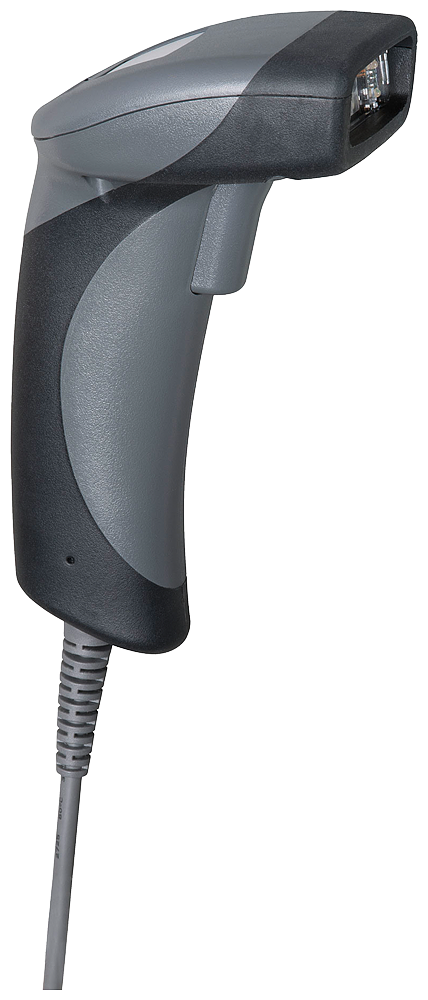

SIMATIC MV320 optical reader, handheld reader for 1D and 2D codes, such as data matrix, ready-to-use set from reader and USB cable power supply via USB 6' (1.8 m) for use with codes with medium to high contrast, reading range 20 mm to 375 mm depending on code type and size.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Optical data:
Design of image sensor / of the camera: CMOS 1280 x 960, image resolution 960 x 640.
Fastening method / of lens: Integrated.
Type of light source: Lighting system comprising incident light (red).
Picture recording frequency / maximum: 10 Hz.
Type of focusing: Fixed focus, optimum focal point at 6.3 mm.
Type of current supply: Via USB or external plug-type power supply unit (RS232), 5 V, 410 Ma.
Ambient temperature:
During operation: -20 ... +55 °C.
During storage: -30 ... +65 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Height of fall / maximum: 1.8 m.
Width: 132 mm.
Height: 52 mm.
Depth: 92 mm.
Design of the display: 2 LEDs.
Operator element version: Trigger in handle.
Design of acoustic signalling element: Vibration alarm, audible signal.
Design of the interface: USB, RS232.
