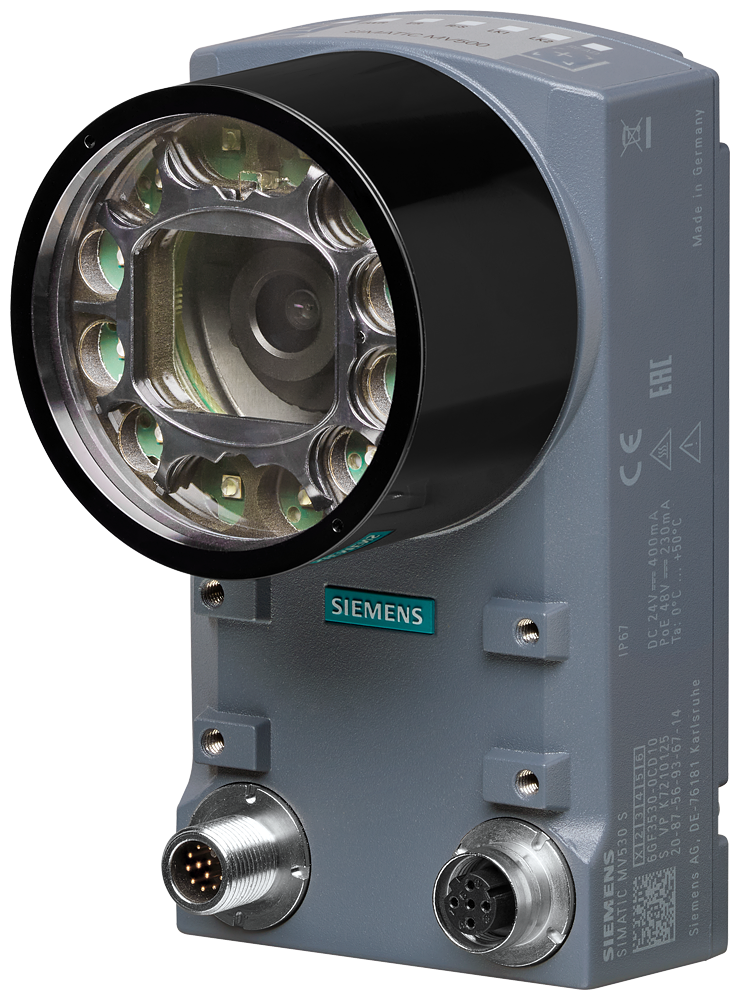

SIMATIC MV530 SR optical reader, resolution: 800 x 600 pixels, for 1D/2D codes
SKU: 6GF3530-0CD10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC MV530 S optical reader has a resolution of 800 x 600 pixels, a 1D/2D code reading function, an operational range of 30–250 mm (depending on dot size), and an image field of 40x30–185x140 mm.
It also supports PoE and is IP67 rated. delivery: full reader with integrated green ring lamp, pole filter, fixed-cover, fix-focus Optic 5.6 mm, and protective barrel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interfaces:
Number of digital inputs: 1.
Number of digital outputs: 3.
Digital input version: 1 fast trigger input.
Digital output version: 1 fast strobe output, 2 potential-free outputs (NPN- PNP-capable).
Type of electrical connection:
Of Industrial Ethernet interface: M12, d-coded, PoE.
Of the RS 422 interface: M12, 12-pin, male.
Of the RS 232 interface: M12, 12-pin, male.
For supply voltage: M12, 12-pin, male.
At the digital inputs/outputs: M12, 12-pin, male.
Optical data:
Design of image sensor / of the camera: CMOS-Chip, 800 x 600.
Type of image capture: Global shutter with manual or automatic exposure time.
Range: 30 ... 250 mm, range determined and preset by the built-in special lens.
Fastening method / of lens: C-mount lens connection.
Type of light source: Integrated lighting or external lighting according to accessories list.
Picture recording frequency / maximum: 100 Hz.
Code reading rate / maximum: 80 1/s.
Type of focusing: Based on mounting.
Supply voltage / at DC, rated value: 24 V, 19.2 ... 28.8 V.
Consumed current / at DC / at 24 V:
Typical: 0.2 A.
Maximum: 2 A.
Material: Die-cast aluminium.
Colour: petrol blue.
Ambient temperature:
During operation: 50 °C.
During storage: -30 ... +70 °C.
During transport: -30 ... +70 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP67.
Shock resistance: According to IEC 60068-2.
Shock acceleration: 300 m/s².
Vibrational acceleration: 40 m/s².
Width: 68 mm.
Height: 122 mm.
Depth: 45 mm.
Fastening method: 4 x M4 screws.
Display version: 7 LEDs.
Silicon-free.
