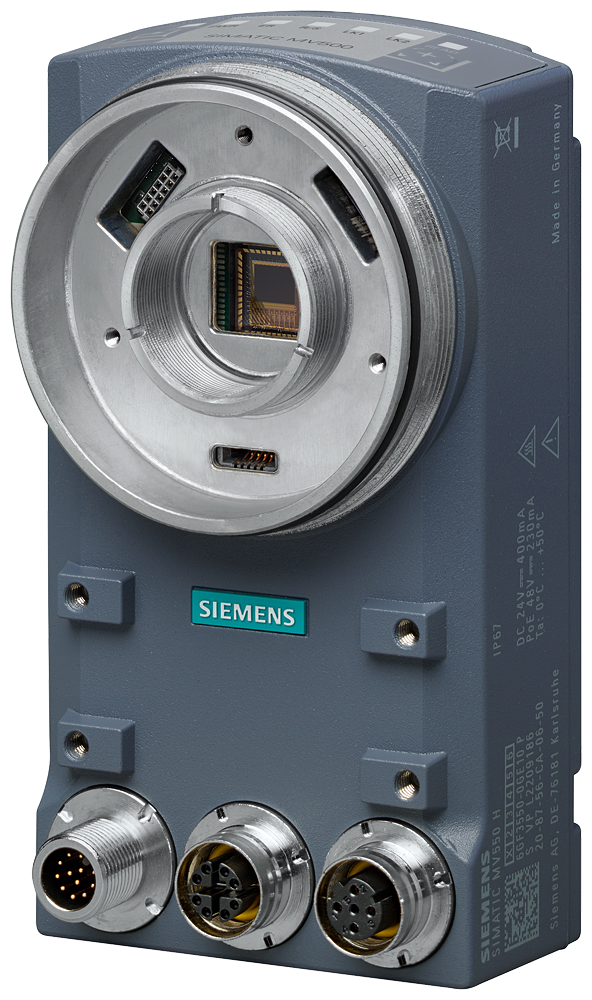

SIMATIC MV550 H code reader, resolution: 1280 x 1024 pixels, for 1D/2D codes

Specifications: Interfaces: Number of digital inputs: 1. Number of digital outputs: 3. Digital input version: 1 fast trigger input. Digital output version: 1 fast strobe output, 2 potential-free outputs (NPN- PNP-capable). Type of electrical connection: Of Industrial Ethernet interface: M12, d-coded, PoE. Of the RS 422 interface: M12, 12-pin, male. Of the RS 232 interface: M12, 12-pin, male. For supply voltage: M12, 12-pin, male. At the digital inputs/outputs: M12, 12-pin, male. Optical data: Design of image sensor / of the camera: CMOS-Chip, 1280 x 1024. Type of image capture: Global shutter with manual or automatic exposure time. Range: 70 ... 3000 mm, Using C-mount lenses and lens accessories, the range can be exactly matched to the application. Fastening method / of lens: C-mount lens connection. Type of light source: Integrated lighting or external lighting according to accessories list. Picture recording frequency / maximum: 70 Hz. Code reading rate / maximum: 70 1/s. Type of focusing: Manual adjustment on the lens. Supply voltage / at DC, rated value: 24 V, 19.2 ... 28.8 V. Consumed current / at DC / at 24 V: Typical: 0.2 A. Maximum: 2 A. Material: Die-cast aluminium. Colour: petrol blue. Ambient temperature: During operation: 50 °C. During storage: -30 ... +70 °C. During transport: -30 ... +70 °C. Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %. Protection class IP: IP67. Shock resistance: According to IEC 60068-2. Shock acceleration: 300 m/s². Vibrational acceleration: 40 m/s². Width: 68 mm. Height: 122 mm. Depth: 45 mm. Fastening method: 4 x M4 screws. Display version: 7 LEDs. Silicon-free.
