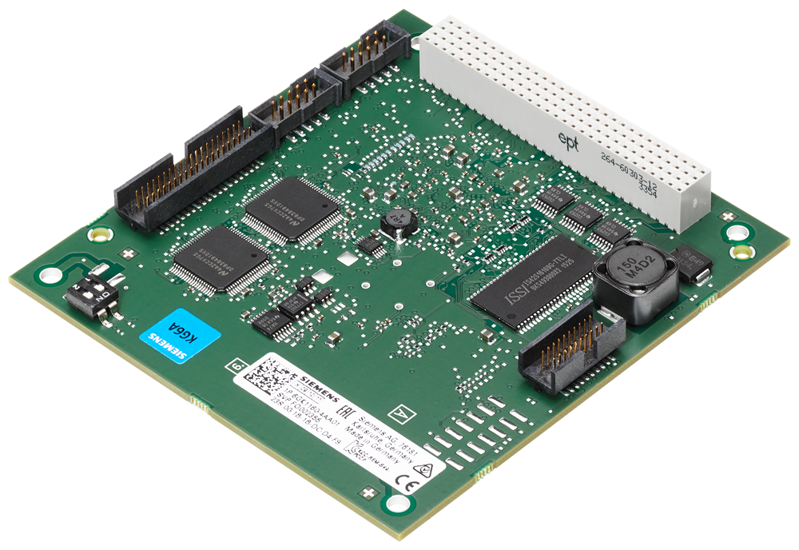

Communications processor CP 1604 PC/104 plus, connection to PN IO
SKU: 6GK1160-4AA01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 1604.
Communications processor CP 1604 PC/104 plus card (32-bit; 33/66 MHz; 3.3/5 V) with asic ERTEC 400 for PROFINET IO with 4-port real-time switch via Development kit DK-16XX PN IO and NCM PC.
Transfer rate:
Transfer rate: 100 Mbit/s.
Interfaces:
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 4.
For power supply: 1.
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port via connection board.
Of the backplane bus: PCI-104 (32Bit).
For power supply: 4-pole terminal block through power supply board.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Type of voltage supply / optional external power supply: Yes.
Supply voltage:
1 / from backplane bus: 5 V.
External: 5 V.
Note: optional external power supply and external supply voltage alternatively via power supply board (optional accessory).
Relative symmetrical tolerance / at DC:
At 5 V: 5 %.
Consumed current:
1 / from backplane bus / at DC / maximum: 0.8 A.
From external supply voltage / at DC / at 24 V / maximum: 0.3 A.
Power loss [W]: 4 W.
Power loss [W] / in switch mode / maximum: 4.1 W.
Ambient conditions:
Ambient temperature:
During operation: 5 ... 60 °C.
During storage: -20 ... +60 °C.
During transport: -20 ... +60 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP00.
Design, dimensions and weights:
Module format: PC/104-Plus.
Width: 90 mm.
Height: 24 mm.
Depth: 95 mm.
Net weight: 110 g.
Fastening method: Screw mounting.
Product features, product functions, product components / general:
Number of plug-in cards of same design / plug-in / per PC station: 1.
Accessories:
Accessories (optional): Connection board for CP 1604, power supply board for CP 1604, HARDNET-IE DK (development kit).
