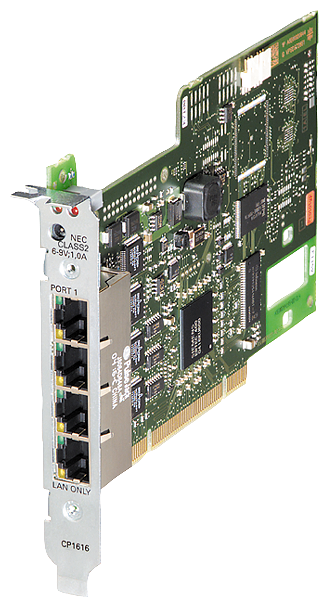

Communications processor CP 1616 PCI, 4x RJ45, connection to PN IO
SKU: 6GK1161-6AA02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 1616.
The Communications Processor CP 1616 PCI card (32-bit; 33/66 MHz; 3.3/5 V) is connected to PROFINET IO with a 4-port real-time switch (RJ45) via the development kit DK-16XX PN IO; NCM PC.
Transfer rate:
Transfer rate: 100 Mbit/s.
Interfaces:
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 4.
For power supply: 1.
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port.
Of the backplane bus: PCI (32Bit 3,3V/5V UniversalKey 33/66MHz).
For power supply: Low-voltage socket for hollow plug 3.5 mm (-) / 1.3 mm (+).
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage:
1 / from backplane bus: 5 V.
External: 6 ... 9 V.
Relative symmetrical tolerance / at DC:
At 5 V: 5 %.
At 12 V: 5 %.
Consumed current:
1 / from backplane bus / at DC / maximum: 0.8 A.
From external supply voltage / at DC / at 6 V / maximum: 0.65 A.
From external supply voltage / at DC / at 9 V / maximum: 0.45 A.
Power loss [W]: 4 W.
Power loss [W] / in switch mode / maximum: 4.1 W.
Ambient conditions:
Ambient temperature:
During operation: 5 ... 70 °C.
During storage: -40 ... +60 °C.
During transport: -20 ... +60 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP00.
Design, dimensions and weights:
Module format: PCI.
Width: 18 mm.
Height: 107 mm.
Depth: 167 mm.
Net weight: 110 g.
Product features, product functions, product components / general:
Number of plug-in cards of same design / plug-in / per PC station: 1.
