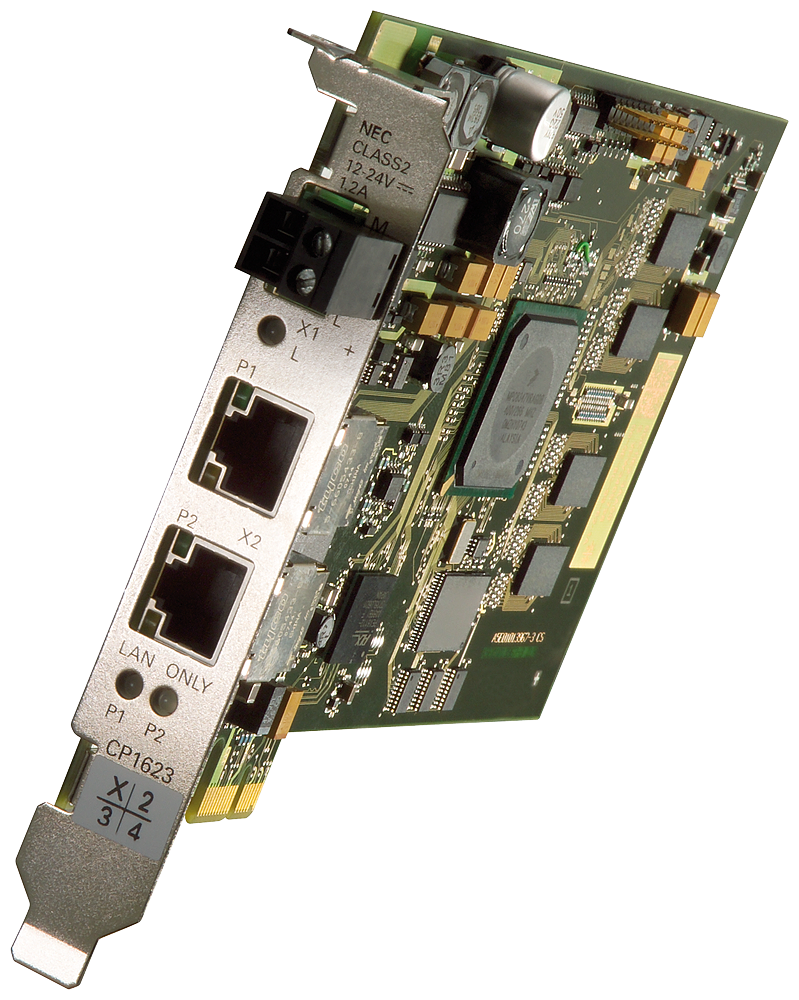

Communications processor CP 1623 PCIe X1, connection to Ind. Ethernet
SKU: 6GK1162-3AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 1623
The communications processor CP 1623 PCI Express X1 (3, 3 V/12 V) for connection to Industrial Ethernet (10/100/1000 Mbit/s) with a 2-port switch (RJ45) can be uploaded onto the device HARDNET-IE S7 and S7-REDCONNECT.
SIMATIC NET CD V7.0 HF1 supports SIMATIC NET software.
Transfer rate:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Interfaces:
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 2
For power supply: 1.
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port.
Of the backplane bus: PCI Express x1.
For power supply: 2-pole terminal block.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Type of voltage supply / optional external power supply: Yes.
Supply voltage:
1 / from backplane bus: 3.3 V.
2 / from backplane bus: 12 V.
External: 25 V.
External: 10.5 ... 32 V.
Relative symmetrical tolerance / at DC:
At 3.3 V: 9 %.
At 5 V: 5 %.
At 12 V: 8 %.
at 24 V: 33 %.
Consumed current:
1 / from backplane bus / at DC / maximum: 0.85 A.
2 / from backplane bus / at DC / maximum: 0.4 A.
from external supply voltage / at DC / at 12 V / maximum: 0.55 A.
From external supply voltage / at DC / at 24 V / maximum: 0.3 A.
Power loss [W]: 7.6 W.
Power loss [W] / in switch mode / maximum: 7.2 W.
Ambient conditions:
Ambient temperature:
During operation: 5 ... 55 °C.
During storage: -20 ... +60 °C.
During transport: -20 ... +60 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP00.
Design, dimensions and weights:
Module format: PCI Express x1 (half length).
Width: 18 mm.
Height: 111 mm.
Depth: 167 mm.
Net weight: 124 g.
Product features, product functions, product components / general:
Number of plug-in cards of same design / plug-in / per PC station: 4.
