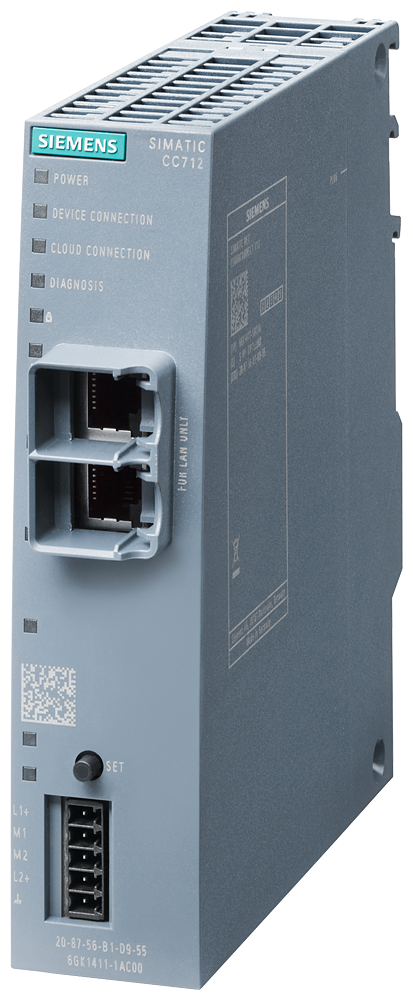

Cloud Connect 7, CC712 IoT Gateway, connect S7/Modbus devices to Cloud Services
SKU: 6GK1411-1AC00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Simatic CC712.
SIMATIC CloudConnect 7, CC712 IoT Gateway for connecting programmable controllers to cloud services, using OPC 2xEthernet RJ45 field protocols: S7, S7-Plus, MQTT, HTTP, OPC UA, Modbus MES/cloud protocols.
transfer rate:
transfer rate:
at the 1st interface: 10 ... 1000 Mbit/s.
at the 2nd interface: 10 ... 1000 Mbit/s.
interfaces:
number of electrical connections:
at the 1st interface / according to Industrial Ethernet: 1.
at the 2nd interface / according to Industrial Ethernet: 1.
for power supply: 2.
type of electrical connection:
at the 1st interface / according to Industrial Ethernet: RJ45 port.
at the 2nd interface / according to Industrial Ethernet: RJ45 port.
type of electrical connection:
for power supply: 5-pin terminal strip.
design of the removable storage:
CLP: Yes.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
supply voltage / 1 / rated value: 10.8 ... 28.8 V.
supply voltage / external / at DC / rated value: 24 V.
consumed current:
from external supply voltage / at 24 V DC:
in communication mode / typical: 180 mA.
power loss [W]: 4.3 W.
ambient conditions:
ambient temperature:
for vertical installation / during operation: 0 ... 40 °C.
for horizontally arranged busbars / during operation: 0 ... 60 °C.
during storage: -40 ... +40 °C.
during transport: -40 ... +70 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 35 mm.
height: 147 mm.
depth: 127 mm.
net weight: 0.3 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
wall mounting: Yes.
