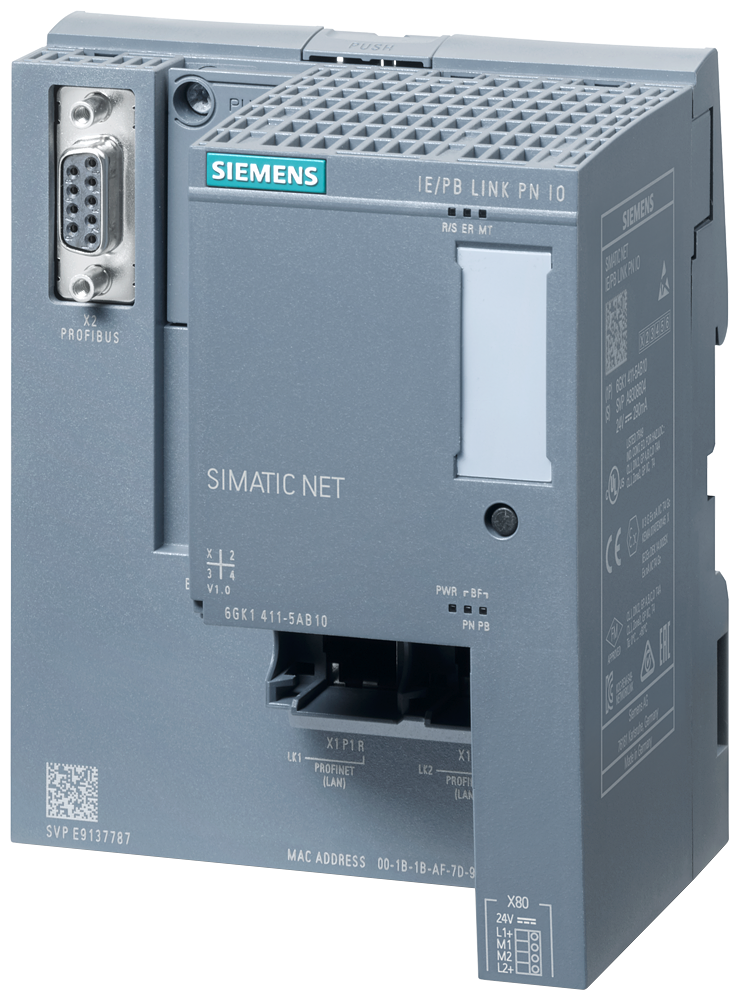

IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality
SKU: 6GK1411-5AB10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE/PB-Link PN IO.
The IE/PB link PN IO serves as a gateway between Industrial Ethernet and PROFIBUS, providing real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support for DP/PA and DP/FF links, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, and firmware version V4.0.
suitability for operation: Gateway between Industrial Ethernet and PROFIBUS.
transfer rate:
transfer rate:
at the 1st interface: 10 ... 100 Mbit/s.
at the 2nd interface: 9.6 kbit/s ... 12 Mbit/s.
interfaces:
number of electrical connections:
at the 1st interface / according to Industrial Ethernet: 2.
at the 2nd interface / according to PROFIBUS: 1.
for power supply: 2.
type of electrical connection:
at the 1st interface / according to Industrial Ethernet: RJ45 port onboard or bus adapter.
type of electrical connection:
at the 2nd interface / according to PROFIBUS: 9-pin Sub-D socket (RS 485).
for power supply: 4-pole terminal block.
design of the removable storage:
C-PLUG: Yes.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
type of voltage / of the supply voltage: DC.
supply voltage / external / at DC / rated value: 24 V.
relative positive tolerance / at DC / at 24 V: 20 %.
relative negative tolerance / at DC / at 24 V: 15 %.
consumed current:
from external supply voltage / at DC / at 24 V / typical: 0.2 A.
from external supply voltage / at DC / at 24 V / maximum: 0.3 A.
power loss [W]: 4.8 W; Typical.
ambient conditions:
ambient temperature:
for vertical installation / during operation: 0 ... 40 °C.
for horizontally arranged busbars / during operation: 0 ... 60 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
module format: ET 200SP design.
width: 100 mm.
height: 117 mm.
depth: 74 mm.
net weight: 0.6 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
performance data / PROFIBUS DP:
service / as DP master:
DPV0: Yes.
DPV1: Yes.
number of DP slaves:
at the 2nd interface / as DP master / maximum: 64.
data volume:
of the address range of the inputs / as DP master / total: 2048 byte.
of the address range of the outputs / as DP master / total: 2048 byte.
of the address range of the inputs / per DP slave: 244 byte.
of the address range of the outputs / per DP slave: 244 byte.
performance data / S7 communication:
number of possible connections / for S7 communication:
maximum: 32.
performance data / multi-protocol mode:
number of active connections / with multi-protocol mode: 48.
performance data / PROFINET communication / as PN IO device:
product function / PROFINET IO device: Yes.
product functions / management, configuration, engineering:
product function / MIB support: Yes.
protocol / is supported:
SNMP v1: Yes.
DCP: Yes.
LLDP: Yes.
configuration software:
required: STEP 7 as of V5.5 SP4 HF11 and HSP, STEP 7 Professional as of V15, PCS7 V9.0, PCS neo as of V3.0, PNI as of V1.0.
identification & maintenance function:
I&M0 - device-specific information: Yes.
I&M1 - higher level designation/location designation: Yes.
I&M2 - installation date: Yes.
I&M3 – comment: Yes.
product function / is supported / identification link: Yes; according to IEC 61406-1:2022.
product functions / routing:
service / as PROFIBUS / data set routing: Yes.
number of possible connections / with data set routing / maximum: 32.
product functions / redundancy:
product function:
ring redundancy: Yes.
product function / of the PROFINET IO device / is supported:
PROFINET system redundancy: No.
protocol / is supported / Media Redundancy Protocol (MRP): Yes.
product functions / time:
product function / pass on time synchronization: Yes.
protocol / is supported:
NTP: Yes.
SIMATIC time synchronization (SIMATIC Time): Yes.
standards, specifications, approvals:
reference code:
according to IEC 81346-2:2019: KED.
accessories:
accessories: Optional: C-PLUG, BusAdapter of the ET 200SP system.
