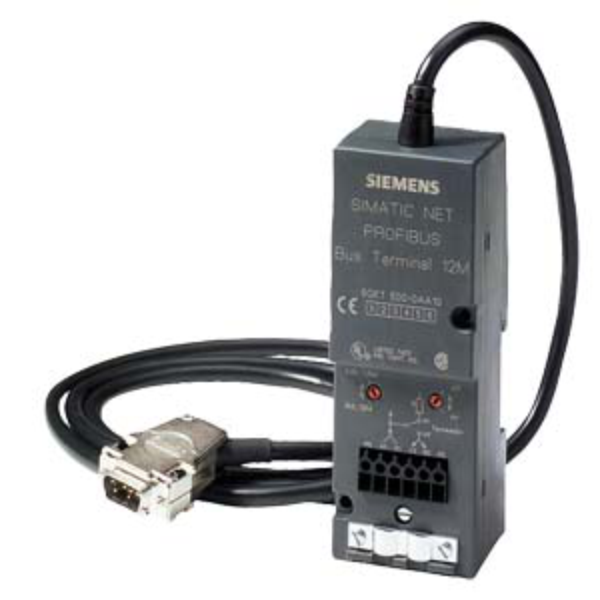

Siemens S7-1500 PROFIBUS Bus terminal 12M
SKU: 6GK1500-0AA10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a DIN-rail mountable PROFIBUS bus terminal supporting transfer rates from 9.6 kbit/s to 12 Mbit/s.
It features screw terminal connections for PROFIBUS cables and includes a 1.5 m plug-in cable for quick deployment.
The unit is optimized for stationary installations and supports hazardous area certifications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: PROFIBUS RS485.
Transfer Rate: 9.6 kbit/s to 12 Mbit/s.
Cable Connection Type: Screw terminals.
Mounting: 35 mm DIN rail.
Dimensions (W×H×D): 50 × 138 × 53 mm.
Weight: ~351 g.
Enclosure Material: Plastic.
Cable Included: 1.5 m plug-in PROFIBUS cable.
Protection Class: IP20.
Operating Temperature: –25 °C to +60 °C.
Hazardous Zone Certification: Ex nA IIC T6 Gc (GB3836.1, GB3836.8).
Standards Compliance: IEC 61406-1:2022 (Identification Link).
