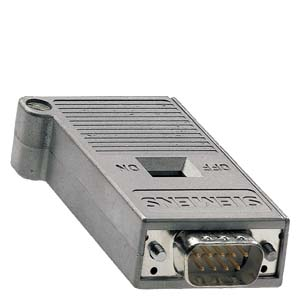

SIEMENS SIMATIC S7-300 PROFIBUS DP bus connector RS 485, with axial cable outlet for SIMATIC OP, for connecting to PPI, MPI, PROFIBUS

Specifications: Product type designation: PROFIBUS plug RS 485. Suitability for use: For connecting PROFIBUS nodes to the PROFIBUS bus cable. Transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s. Type of cable outlet: 180-degree cable outlet. Width: 15 mm. Height: 57 mm. Depth: 39 mm. Product feature: silicon-free. Product component: strain relief. Interfaces: Number of electrical connections (for PROFIBUS cables): 2. Number of electrical connections (for network components or terminal equipment): 1. Type of electrical connection (for PROFIBUS cables): Terminal blocks. Type of electrical connection (for network components or terminal equipment): 9-pin sub-D connector. Mechanical data: Design of terminating resistor: Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated. Material / of the enclosure: metal. Locking mechanism design: Screwed joint. Ambient conditions: Ambient temperature (during operation): 0 - 60 °C. Ambient temperature (during storage): -25 - +80 °C. Ambient temperature (during transport): -25 - +80 °C. Relative humidity (at 25 °C / without condensation / during operation / Maximum): 75 %. Protection class IP: IP20.
