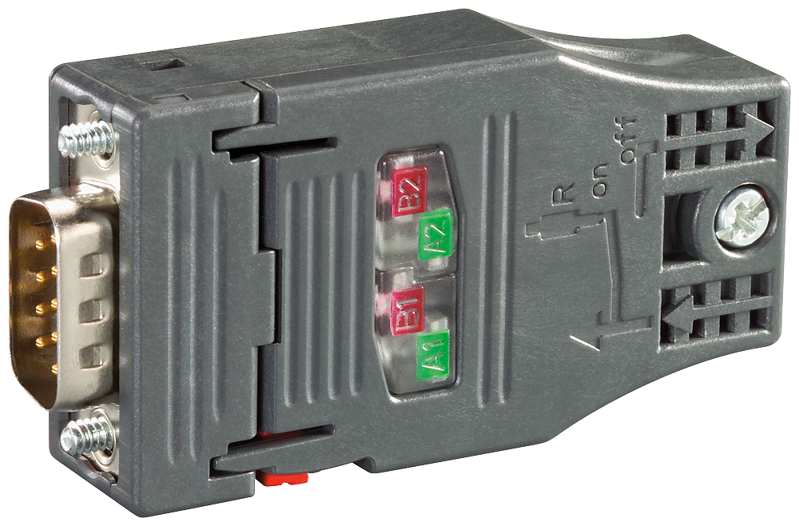

SIMATIC NET, PROFIBUS FC RS 485 plug 180, PB connector, FastConnect port
SKU: 6GK1500-0FC10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Designation of product type Connector RS 485 for PROFIBUS FC bus.
Product Description: Bus connector with axial cable output (180°).
PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM.
Transfer rate: 12 Mbit/s, terminating resistor with isolation function, plastic container.
Suitability for use: For connecting PROFIBUS nodes to the PROFIBUS bus cable.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 2.
For network components or terminal equipment: 1.
Type of electrical connection:
For PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables.
For network components or terminal equipment: Sub-D connector (9-pin).
Type of electrical connection / FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Design of terminating resistor: Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
Design, dimensions and weights:
Type of cable outlet: 180° cable outlet.
Width: 16 mm.
Height: 62 mm.
Depth: 34.5 mm.
Net weight: 40 g.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
Relative humidity:
at 25 °C / without condensation / during operation / maximum: 75 %.
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Product component:
PG connection socket: No.
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
cULus approval Yes.
Railway application in accordance with EN 50155: No.
