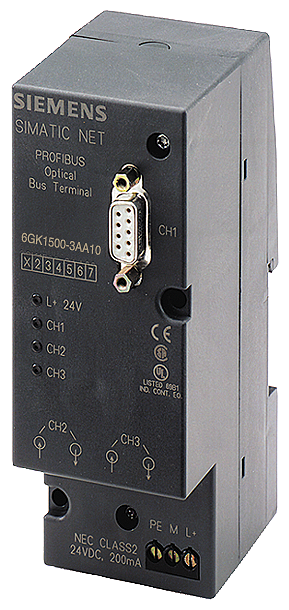

PROFIBUS OBT 2.0, optical bus terminal, for connection to optical PROFIBUS
SKU: 6GK1500-3AA10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS OBT.
PROFIBUS OBT is an optional bus terminal for connecting PROFIBUS nodes without an integrated opt. interface to an optional PROFIBUS DP; it does not include a Simplex plug.
Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Transfer rate / with PROFIBUS PA: 45.45 kbit/s.
Interfaces:
Number of electrical/optical connections / for network components or terminal equipment / maximum: 3.
Number of electrical connections:
For network components or terminal equipment: 1.
For power supply: 1.
Type of electrical connection:
For network components or terminal equipment: 9-pin sub D connector.
For power supply: 3-pole terminal block.
For power supply and signaling contact: -.
Number of optical interfaces / for fiber optic cable: 2.
Design of the optical interface / for fiber optic cable: Duplex port.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage / at DC / rated value: 24 V.
Supply voltage / at DC: 19.2 ... 28.8 V.
Ambient conditions:
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
At 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP30.
Design, dimensions and weights:
Design compact:
Width: 50.5 mm.
Height: 138 mm.
Depth: 78 mm.
Net weight: 400 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
Wall mounting: Yes.
