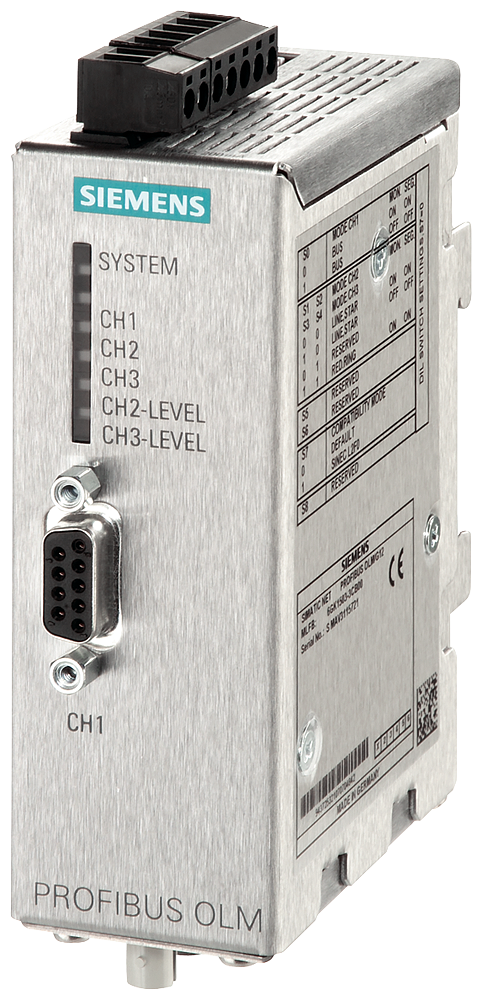

PROFIBUS OLM/G11 V4.0 Optical Link Module, 1x RS485, 1x BFOC (glass FOC)
SKU: 6GK1503-2CB00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS OLM/G11 V4.0.
PROFIBUS OLM/G11 V4.0 optical link module with 1 RS-485 and 1 glass fiber optic cable interface (2 BFOC sockets), signaling contact, and test port.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Transfer rate / with PROFIBUS PA: 45.45 kbit/s.
Interfaces:
Number of electrical/optical connections / for network components or terminal equipment / maximum: 2.
Number of electrical connections:
For network components or terminal equipment: 1.
For measuring device: 1.
For signaling contact: 1.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: 9-pin Sub-D socket.
For measuring device: 2-pole terminal block.
For power supply and signaling contact: 5-pole terminal block.
Number of optical interfaces / for fiber optic cable: 1.
Design of the optical interface / for fiber optic cable: BFOC port.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage / at DC / rated value: 24 V.
Supply voltage / at DC: 18.8 ... 28.8 V.
Product component / fusing at power supply input: Yes.
Consumed current / at DC / at 24 V / maximum: 0.2 A.
Ambient conditions:
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
At 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP40.
design, dimensions and weights:
Design: compact
Width: 39.5 mm.
Height: 112 mm.
Depth: 74.5 mm.
Net weight: 340 g
Fastening method:
35 mm top hat DIN rail mounting: Yes.
Wall mounting: Yes.
