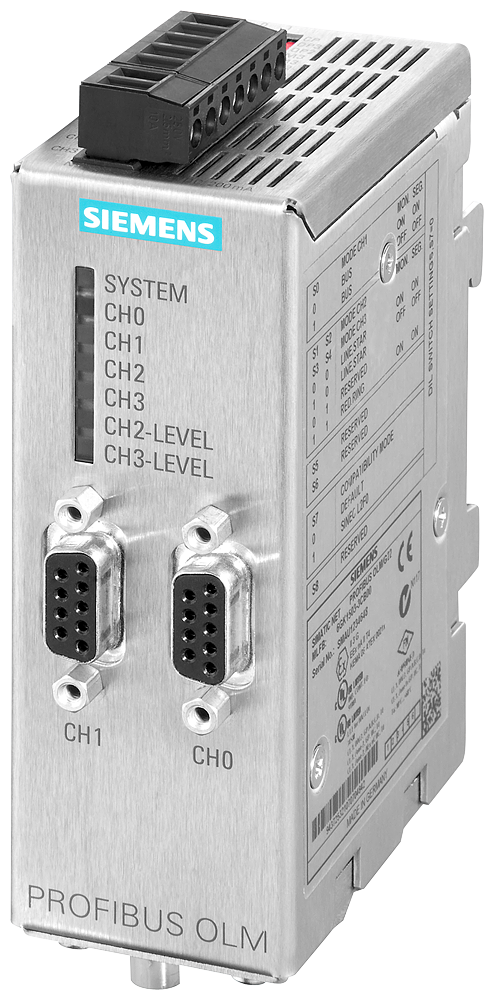

PROFIBUS OLM/G22 V4.0 Optical Link Module, 2x RS-485, 2x BFOC (glass FOC)

Specifications: Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s. Transfer rate / with PROFIBUS PA: 45.45 kbit/s. Number of electrical/optical connections / for network components or terminal equipment / maximum: 4. Number of electrical connections: For network components or terminal equipment: 2. For measuring device: 1. For signalling contact: 1. For power supply: 1. For redundant voltage supply: 1. Type of electrical connection: For network components or terminal equipment: 9-pin Sub-D socket. For measuring device: 2-pole terminal block. For power supply and signalling contact: 5-pole terminal block. Number of optical interfaces / for Fiber optic cable: 2. Design of the optical interface / for Fiber optic cable: BFOC port. Wire length: For glass FOC with 50/125 µm / at 3 dB/km / maximum: 3 km. For glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum: 3 km. Operating voltage / of the signalling contacts / at DC / rated value: 24 V. Operational current / of the signalling contacts / at DC / maximum: 0.1 A. Type of voltage / of the supply voltage: DC. Supply voltage / at DC / rated value: 24 V. Supply voltage / at DC: 18.8 ... 28.8 V. Consumed current / at DC / at 24 V / maximum: 0.2 A. Ambient temperature: During operation: 0 ... 60 °C. During storage: -40 ... +70 °C. During transport: -40 ... +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP40. Design: compact. Width: 39.5 mm. Height: 112 mm. Depth: 74.5 mm. Fastening method: 35 mm top hat DIN rail mounting. Wall mounting.
