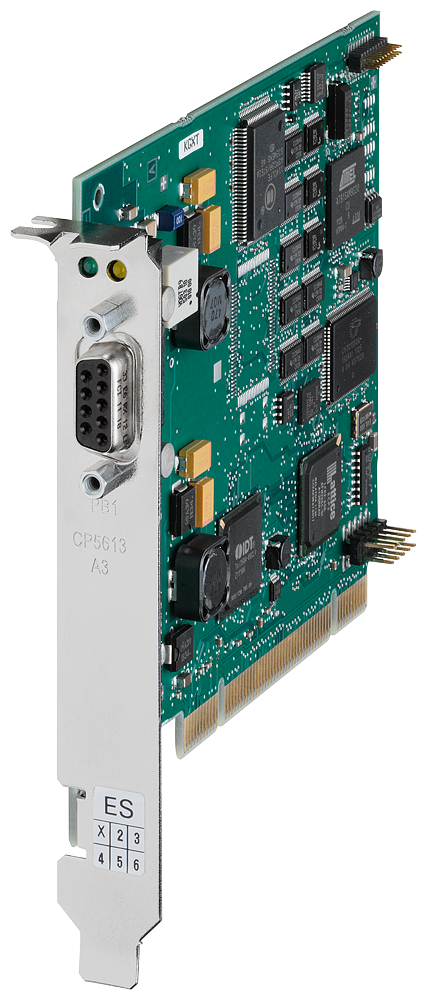

Communications processor CP 5613 A3, PCI, connection to PROFIBUS
SKU: 6GK1561-3AA02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Communications processor CP 5613 A3, PCI card (32-bit; 3.3/5 V; 33/66 MHz), with a PROFIBUS interface, configuration tool, and DP Base software.
DP-RAM interface for DP master; includes PG and FDL protocols.
Single license for one installation of runtime software, Class A; program and manuals on DVD; two languages (de, en).
For operating system support, see SIMATIC NET software.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Number of electrical connections at the 1st interface / according to PROFIBUS: 1.
Type of electrical connection:
At the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS 485).
Of the backplane bus: PCI (32Bit 3,3V/5V Universal Key 33/66MHz).
Type of voltage / of the supply voltage: DC.
Supply voltage:
1 / from backplane bus: 3.3 V.
2 / from backplane bus: 12 V.
Consumed current:
1 / from backplane bus / at DC / maximum: 0.15 A.
2 / from backplane bus / at DC / maximum: 0.25 A.
Power loss: 3.5 W.
Ambient temperature:
During operation: 5 ... 55 °C.
During storage: -20 ... +60 °C.
During transport: -20 ... +60 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 85 %.
Protection class IP: IP00.
Module format: PCI.
Width: 18 mm.
Height: 107 mm.
Depth: 125 mm.
