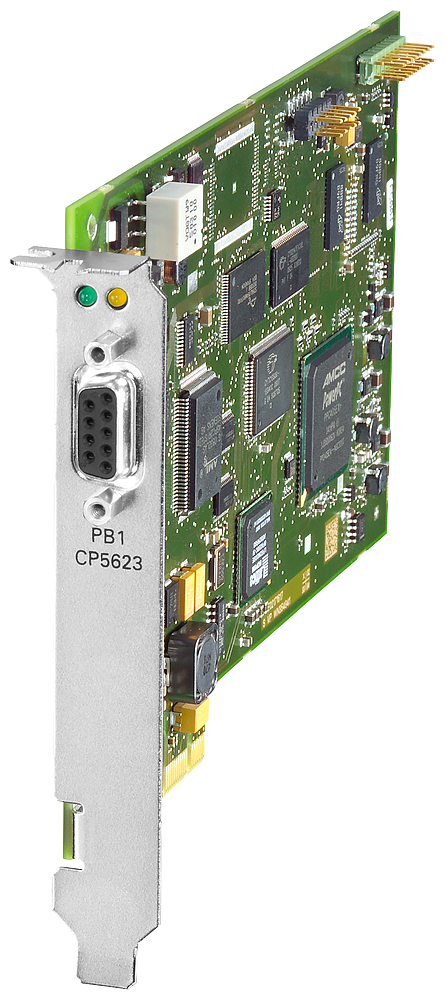

Communications processor CP 5623 PCIe X1, connection to PROFIBUS
SKU: 6GK1562-3AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Communications processor CP 5623 PCI Express X1 (3, 3V) for connection to PROFIBUS; includes configuration tool and DP-Base software: DP-RAM interface for DP master, including PG and FDL protocols; single license for one installation; runtime software, Class A; software and electronic manual on DVD, two languages (de, en); operating system support; see SIMATIC NET software.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Number of electrical connections at the 1st interface / according to PROFIBUS: 1.
Type of electrical connection:
At the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS 485).
Of the backplane bus: PCI Express x1.
Type of voltage / of the supply voltage: DC.
Supply voltage:
1 / from backplane bus: 3.3 V.
2 / from backplane bus: 12 V.
Consumed current:
1 / from backplane bus / at DC / maximum: 0.72 A.
2 / from backplane bus / at DC / maximum: 0.25 A.
Power loss: 5.4 W.
Ambient temperature:
During operation: 5 ... 60 °C.
During storage: -20 ... +60 °C.
During transport: -20 ... +60 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 85 %.
Protection class IP: IP00.
Module format: PCI Express x1 (half length).
Width: 18 mm.
Height: 112 mm.
Depth: 168 mm.
