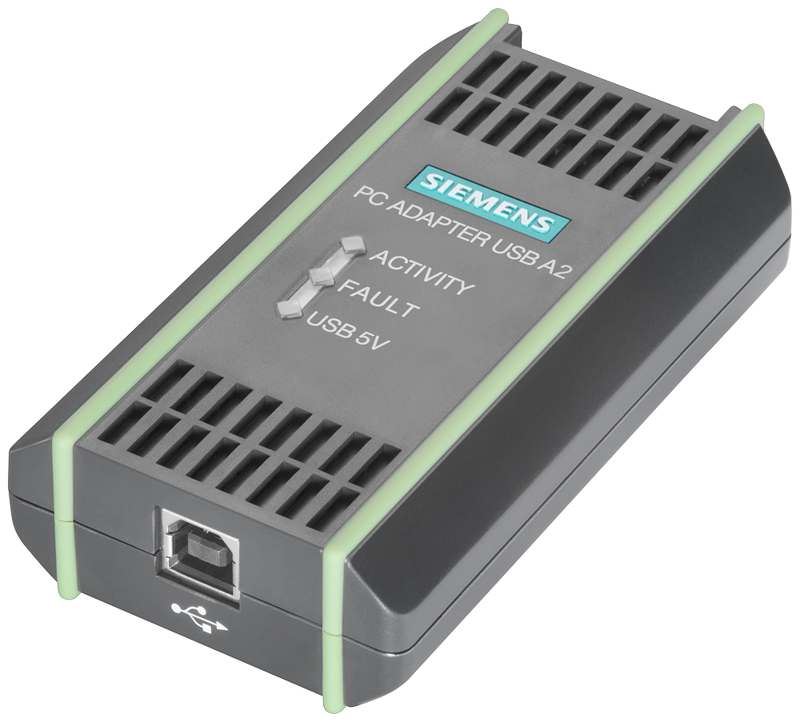

PC adapter USB A2, connection PG/PC/Notebook to SIMATIC S7 via PROFIBUS
SKU: 6GK1571-0BA00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Computer adaptor.
USB A2 USB adapter (USB V2.0) for connecting a notebook, PC, or PG to the SIMATIC S7 via MPI or PROFIBUS; includes 0.3 m MPI cable; compatible with Windows XP, Vista, and Windows 7 32/64 bit and above.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Number of electrical connections at the 1st interface / according to PROFIBUS: 1.
Number of interfaces / according to USB: 1.
Type of electrical connection:
At the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS 485).
Of the USB interface: Standard-B socket.
Type of voltage / of the supply voltage: DC.
Supply voltage from USB: 5 V, Supply direct from USB.
Consumed current from USB: 0.2 A.
Power loss: 1 W.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity / at 30 °C / during operation / maximum: 95 %.
Protection class IP: IP20.
Module format: USB V2.0 adapter.
Width: 58 mm.
Height: 26 mm.
Depth: 105 mm.
Number of plug-in cards of same design / plug-in / per PC station: 1.
