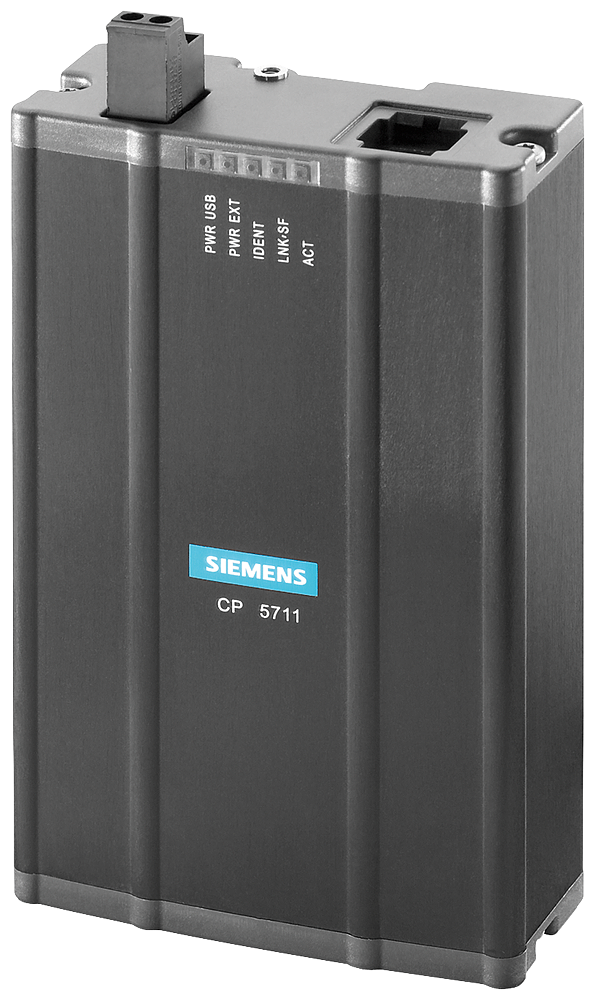

Communications processor CP 5711, USB 2.0 adapter, PG/Notebook to PROFIBUS
SKU: 6GK1571-1AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Communications Processor CP 5711 USB adapter (USB V2.0) connects a PG or notebook to PROFIBUS or MPI and includes a 2 m USB cable.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Number of electrical connections:
At the 1st interface / according to PROFIBUS: 1.
For power supply: 1.
Number of interfaces / according to USB: 1.
Type of electrical connection:
At the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS 485).
For power supply: 2-pole terminal block.
Of the USB interface: Standard-B socket with mechanical interlock.
Type of voltage / of the supply voltage: DC.
Supply voltage:
From USB: 5 V.
External: 24 V.
External: 18 ... 30 V.
Consumed current:
From USB: 0.5 A.
From external supply voltage / at DC / at 24 V / maximum: 0.3 A.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 85 %.
Protection class IP: IP20.
Module format: USB V2.0 adapter.
Width: 85 mm.
Height: 137 mm.
Depth: 35 mm.
Fastening method: Mounting on DIN rail with optional mounting rail support.
Number of plug-in cards of same design / plug-in / per PC station: 1.
